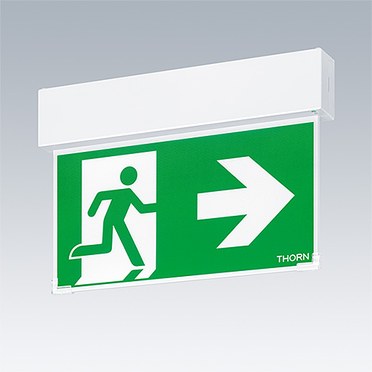

Voyager Blade 2

Sleek and Simple

Multiple mounting options: Surface mounting wall and ceiling, recessed ceiling, suspended ceiling, 90° wall
Each accessory fits to each luminaire variant due to the same base housing for each recognition range
The pictograms "Up, Left, Right, Down" are included in the scope of delivery
Selectable autonomy duration of 1-3h (for manual and self-test) by changing simply DIP switch settings
Testing options: The self-contained Voyager Blade 2 is available in manual test, self-test and with DALI test option

Materials and Finish

Housing: white polycarbonate
Cover: transparent polycarbonate

Tool-less 'Click' mounting after fitting the housing base

Description	Type	Wt (kg)	SAP Code
VOYAGER BLADE 2 115 MS E1/3 BK ecoCALC	LED	0.60	96637605
VOYAGER BLADE 2 115 MS E1/3 WH ecoCALC	LED	0.60	96637597
VOYAGER BLADE 2 115 MS E1/3BC BK ecoCALC	LED	0.65	96637608
VOYAGER BLADE 2 115 MS E1/3BC WH ecoCALC	LED	0.65	96637600
VOYAGER BLADE 2 115 MS E1/3D BK ecoCALC	LED	0.60	96637607
VOYAGER BLADE 2 115 MS E1/3D WH ecoCALC	LED	0.60	96637599
VOYAGER BLADE 2 115 MS E1/3T BK ecoCALC	LED	0.60	96637606
VOYAGER BLADE 2 115 MS E1/3T WH ecoCALC	LED	0.60	96637598
VOYAGER BLADE 2 115 MS ECD WH ecoCALC		0.80	96637564
VOYAGER BLADE 2 115 P MS ECP WH ecoCALC		0.80	96637565
VOYAGER BLADE 2 115 P MS ELP WH ecoCALC		0.80	96637566

Description	Type	Wt (kg)	SAP Code
VOYAGER BLADE 2 150 MS E1/3 BK ecoCALC	LED	0.80	96637609
VOYAGER BLADE 2 150 MS E1/3 WH ecoCALC	LED	0.80	96637601
VOYAGER BLADE 2 150 MS E1/3BC BK ecoCALC	LED	0.85	96637612
VOYAGER BLADE 2 150 MS E1/3BC WH ecoCALC	LED	0.85	96637604
VOYAGER BLADE 2 150 MS E1/3D BK ecoCALC	LED	0.80	96637611
VOYAGER BLADE 2 150 MS E1/3D WH ecoCALC	LED	0.80	96637603
VOYAGER BLADE 2 150 MS E1/3T BK ecoCALC	LED	0.80	96637610
VOYAGER BLADE 2 150 MS E1/3T WH ecoCALC	LED	0.80	96637602
VOYAGER BLADE 2 150 MS ECD WH ecoCALC		0.90	96637568
VOYAGER BLADE 2 150 P MS ECP WH ecoCALC		0.90	96637569
VOYAGER BLADE 2 150 P MS ELP WH ecoCALC		0.90	96637570

Description	Type	Wt (kg)	SAP Code
VOYAGER BLADE 2 115 CON E1/3 BK ecoCALC	LED	1.14	96637621
VOYAGER BLADE 2 115 CON E1/3 WH ecoCALC	LED	1.14	96637613
VOYAGER BLADE 2 115 CON E1/3BC BK ecoCALC	LED	1.19	96637624
VOYAGER BLADE 2 115 CON E1/3BC WH ecoCALC	LED	1.19	96637616
VOYAGER BLADE 2 115 CON E1/3D BK ecoCALC	LED	1.14	96637623
VOYAGER BLADE 2 115 CON E1/3D WH ecoCALC	LED	1.14	96637615
VOYAGER BLADE 2 115 CON E1/3T BK ecoCALC	LED	1.14	96637622
VOYAGER BLADE 2 115 CON E1/3T WH ecoCALC	LED	1.14	96637614
VOYAGER BLADE 2 115 CON ECD WH ecoCALC		1.05	96636560
VOYAGER BLADE 2 115 P CON ECP WH ecoCALC		1.05	96636561
VOYAGER BLADE 2 115 P CON ELP WH ecoCALC		1.05	96636562

Description	Type	Wt (kg)	SAP Code
VOYAGER BLADE 2 150 CON E1/3 BK ecoCALC	LED	1.27	96637625
VOYAGER BLADE 2 150 CON E1/3 WH ecoCALC	LED	1.27	96637617
VOYAGER BLADE 2 150 CON E1/3BC BK ecoCALC	LED	1.32	96637628
VOYAGER BLADE 2 150 CON E1/3BC WH ecoCALC	LED	1.32	96637620
VOYAGER BLADE 2 150 CON E1/3D BK ecoCALC	LED	1.27	96637627
VOYAGER BLADE 2 150 CON E1/3D WH ecoCALC	LED	1.27	96637619
VOYAGER BLADE 2 150 CON E1/3T BK ecoCALC	LED	1.27	96637626
VOYAGER BLADE 2 150 CON E1/3T WH ecoCALC	LED	1.27	96637618
VOYAGER BLADE 2 150 CON ECD WH ecoCALC		1.15	96636568
VOYAGER BLADE 2 150 P CON ECP WH ecoCALC		1.15	96636569
VOYAGER BLADE 2 150 P CON ELP WH ecoCALC		1.15	96636570

Description	Wt (kg)	SAP Code
VOYAGER BLADE 2 FSR WH ecoCALC	0.30	96633310
VOYAGER BLADE 2 MS90° WH ecoCALC	0.25	96633309
VOYAGER BLADE 2 MSC-Cord20 ecoCALC	0.20	96633311

Description	Wt (kg)	SAP Code
EMpowerLED E3D 1/350mA ecoCALC	0.07	59012020
VOYAGER BLADE 2 115 LEGENDSET SM-S ecoCALC	0.13	59011294
VOYAGER BLADE 2 150 LEGENDSET SM-S ecoCALC	0.17	59011295
VOYAGER BLADE 2 E3D ACCU ecoCALC	0.16	59011291
VOYAGER BLADE2 ACCU LiFePo4 1/3h ecoCALC	0.05	59013699
VOYAGER BLADE2 E1/3 CONVERTER ecoCALC	0.06	59013702
VOYAGER BLADE2 E1/3D CONVERTER ecoCALC	0.06	59013704
VOYAGER BLADE2 E1/3T CONVERTER ecoCALC	0.06	59013703
