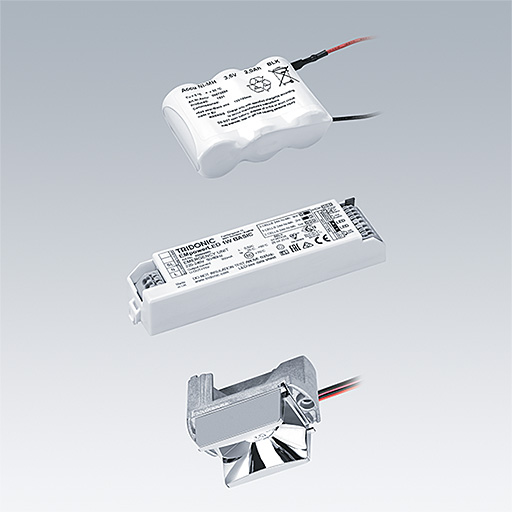

Voyager Star / VOYAGER STAR KIT ESC E3

High performance, LED emergency lighting kit for incorporation into a suitable housing (not supplied), Self contained luminaire, manual test (3 hours) with escape route optic.. Lens: polycarbonate. Optimum thermal management via heat sink. Voltage supply: 220-240 V AC (+/- 10 %) 50-60 Hz Complete with LEDs..

Self-contained emergency luminaires rely on long-lasting batteries. Thorn batteries are robust and comes with a three-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-year-guarantee/5-year-warranty/terms-of-guarantee_en.pdf. The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010).

Luminaire input power: 4 W
Weight: 0.5 kg

Mode selection

Mode selectionSTD - standardEM - emergency operation

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:113 lm
• Total emergency luminous flux:113 lm
• Luminaire efficacy*:28 lm/W
• Ballast:1 x 89899865 EM powerLED 1 W BASIC
• Rated median useful life*: 50000 h at 25 °C
• Luminaire input power*:4 W Power factor = 0.51
• Standby Power*:0.9 W
• Charging power:0.7 W
• Maintenance category CIE 97:D - Enclosed IP2X
