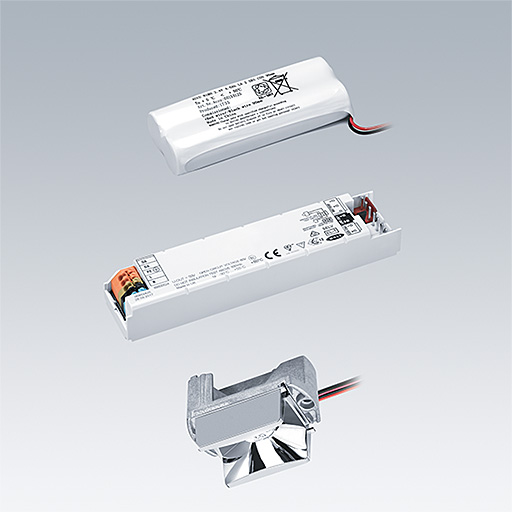

Voyager Star / VOYAGER STAR P KIT ESC E3D

High performance, LED emergency lighting kit for incorporation into a suitable housing (not supplied), Luminaire with local battery supply for 3 h emergency lighting in maintained or non-maintained mode, with automatic test (auto-test) via the luminaire, optional central monitoring via DALI, display of luminaire status via status LED with escape route optic. Non-maintained and maintained mode settable via jumper and NFC interface. Lens: polycarbonate. Optimum thermal management via heat sink. Voltage supply: 220-240 V AC (+/- 10 %) 50-60 Hz Complete with LEDs..

Self-contained emergency luminaires rely on long-lasting batteries. Thorn batteries are robust and comes with a three-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-year-guarantee/5-year-warranty/terms-of-guarantee_en.pdf. The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010).

Luminaire input power: 4.5 W
Weight: 0.5 kg

Mode selection

Mode selectionSTD - standardEM - emergency mode (RESCLITE - VOYAGER)

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:113 lm
• Total emergency luminous flux:113 lm
• Luminaire efficacy*:25 lm/W
• Colour Rendering Index min.:80
• Ballast:1 x 89800524 EM powerLED NTx 102 DIM 5W ZUM
• Correlated colour temperature*:5700 Kelvin
• Rated median useful life*:L90 50000 h at 25 °C
• Luminaire input power*:4.5 W Power factor = 0.4
• Maintenance category CIE 97:D - Enclosed IP2X
