  • Voyager Star — VOYAGER STAR KIT ESC ECC

Voyager Star / VOYAGER STAR KIT ESC ECC

96629611

▼ Data Sheet

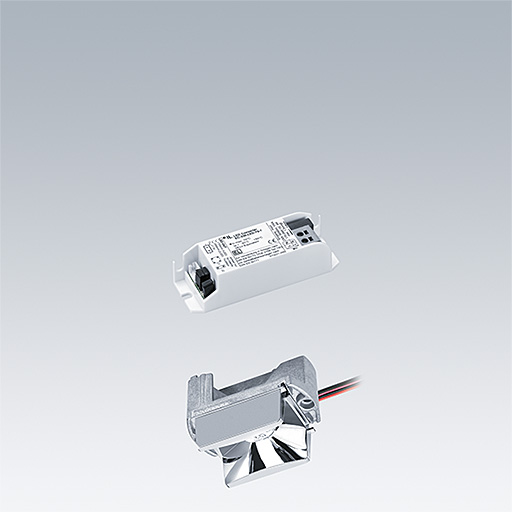

High performance, LED emergency lighting kit for incorporation into a suitable housing (not supplied), Luminaire for central emergency light supply, with circuit monitoring, without single monitoring of the luminaire with escape route optic. Luminaire in maintained mode. Lens: polycarbonate. Optimum thermal management via heat sink. Voltage supply: 220-240 V AC (+/- 10%) 50-60 Hz; 176-280 V DC Complete with LEDs..

Luminaire input power: 3 W
Weight: 0.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:173 lm
  • Total emergency luminous flux:173 lm
  • Luminaire efficacy*:58 lm/W
  • Ballast:1 x 00156480 DRV IL EC 3.5W 700mA 7.5V F
  • Rated median useful life*: 50000 h at 25 °C
  • Luminaire input power*:3 W Power factor = 0.46
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
