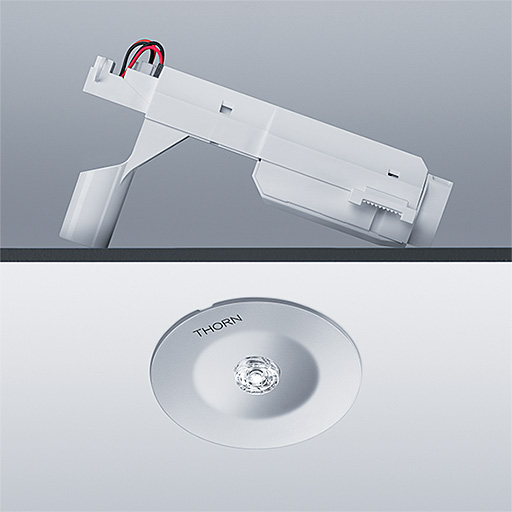

Voyager Star / VOYAGER STAR MRCR SPOT ECC SR

High performance, ceiling recessed LED emergency lighting luminaire, Luminaire for central emergency light supply, with circuit monitoring, without single monitoring of the luminaire with spot lighting optic. Luminaire in maintained mode. Housing: die-cast aluminium, powder coated silver grey (close to RAL 9006). Gear box for mounting in ceiling recess:. IP20_IP40, Ceiling recessed luminaire for 68 mm ceiling cut-out and ceiling thickness from 1 - 25 mm. Lens: polycarbonate. Luminaire can be installed quickly and maintained without tools. Electrical connection (230VAC) via maximum 2.5mm² cable, loop in - loop out possible. Optimum thermal management via heat sink. Maintained mode: -20 °C to +30 °C, non-maintained mode: -20 °C to +35 °C; power supply: 220-240 V AC (+/- 10 %) 50-60 Hz; 176-280 V DC Suitable for recessed installation in concrete casting surround (please order separately). Complete with LEDs.. Ceiling cutout Ø68mm in ceiling thicknesses 1-25mm.

Luminaire input power: 3 W
Dimensions: Ø85 x 2 mm
Weight: 1 kg

Mode selection

Mode selectionSTD - standardEM - emergency mode (RESCLITE - VOYAGER)

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:190 lm
• Total emergency luminous flux:190 lm
• Luminaire efficacy*:63 lm/W
• Ballast:1 x 00156480 DRV IL EC 3.5W 700mA 7.5V F
• Rated median useful life*: 50000 h at 25 °C
• Luminaire input power*:3 W Power factor = 0.46
• Maintenance category CIE 97:D - Enclosed IP2X
