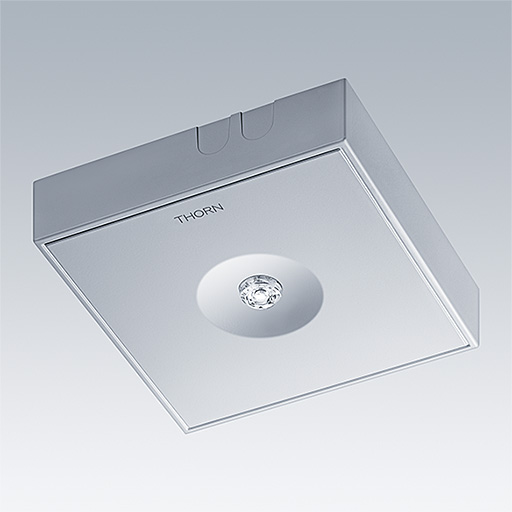

Voyager Star / VOYAGER STAR MSC SPOT ECC SR
96631655
▼ Data Sheet
High performance, surface mounted LED emergency lighting luminaire, Luminaire for central emergency light supply, with circuit monitoring, without single monitoring of the luminaire with spot lighting optic. Luminaire in maintained mode. Housing: die-cast aluminium, powder coated silver grey (close to RAL 9006). Gear tray: galvanised sheet steel. Lens: polycarbonate. IP40, Ceiling surface-mounted luminaire. Luminaire can be installed quickly and maintained without tools. Electrical connection (230VAC) via maximum 2.5mm² cable, loop in - loop out possible. Optimum thermal management via heat sink. Maintained mode: -20 °C to +35 °C, non-maintained mode: -20 °C to +40 °C; power supply: 220-240 V AC (+/- 10 %) 50-60 Hz; 176-280 V DC Complete with LEDs..
Luminaire input power: 3 W
Dimensions: 146 x 146 x 34 mm
Weight: 1 kg
- LED
- CE
- Hfree
- IP40
- Electrical class I
