Installation and Mounting

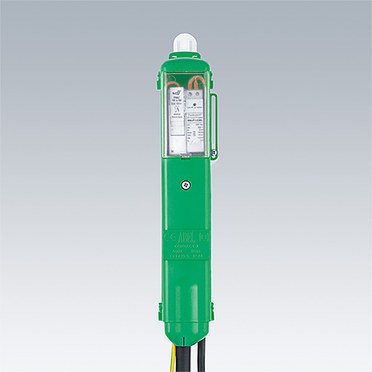

Column or surface mounted with removable terminal block for out of the box or mast connection. Cabling route to fixture from either the top or bottom of the box allowing for easy installation. Cover secured with 4 hooks and 1 single captive screw.
Tempo16 - 10kV
• 2 cables max. 16mm2 section (Min: 1.5mm2 rigid)
• 2 versions: 2x16 or 4x16 for 2 or 4 cores
• Equipped with a circuit breaker Ph/N and fuse 4A 10x38 curve Gg
• Equipped with a surge protection 10kV
• Fit in Ø89mm (not suitable for Ø76 mm)
Tempo25 - 10kV
• 3 cables max. 25mm2 section (mini: 6mm2 rigid).
• 4x25 for 4 cores
• Equipped with a circuit breaker Ph/N and fuse 4A 10x38 curve Gg
• Equipped with a surge protection 10kV
TempoM - 10kV
• 3 cable max. 2.5mm2 (2 x 6 mm2)
• Equipped with a circuit breaker Ph/N and fuse 6A 10x38 curve Gg
• Equipped with a surge protection 10kV
