Contus / CONTUS 8000-840 L1500 NB HF WH

96635821

Data Sheet

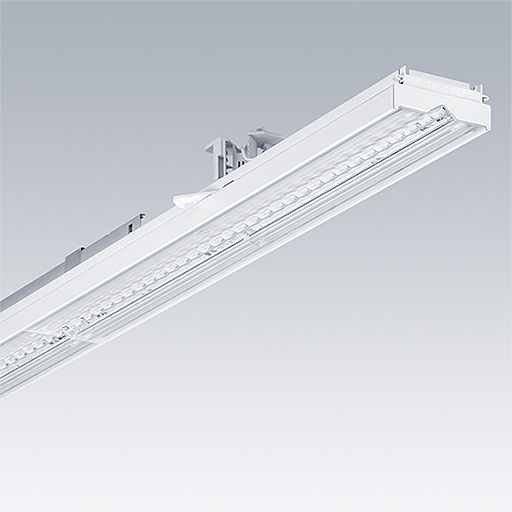

An energy-efficient, linear continuous-row luminaire with 64 highly efficient mid-power LEDs per module with narrow beam light distribution. Fixed output LED driver. Body: sheet steel coated with polyester lacquer finish, white. Class I electrical, IP20, IK07. All-in-one solution: lighting batten, lamp and reflector are combined in one product to produce a 100 % continuous LED light line without gaps or interruptions. The luminaire design fully matches the trunking to create a seamless system. Colour rendering Ra > 80, colour temperature 4000 K.

Please obtain advise from your local representative if you are planning to use the luminaire in environments containing chemical pollutants.

Dimensions: 1498 x 60 x 71 mm
Luminaire input power: 52.3 W
Luminaire luminous flux: 8060 lm
Luminaire efficacy: 154 lm/W
Weight: 2.12 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:8060 lm
  • Luminaire efficacy*:154 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 87501030 LC 50/350/143 fixC lp SNC4 ZUM
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:52.3 W Power factor = 0.97
  • Standby Power*:0.2 W
  • Dimming:FIX
  • Maintenance category CIE 97:D - Enclosed IP2X
  • Total harmonic distortion (THD):7.00 %
  • LED
  • CE
  • ENEC11
  • GLedReP
  • 650°
  • Hfree
  • IK07
  • IP20
  • LLedReP
  • Electrical class I
  • NB
