  • Equaline — EQL C L1000 LRO WH FS

Equaline / EQL C L1000 LRO WH FS

96632053

▼ Data Sheet

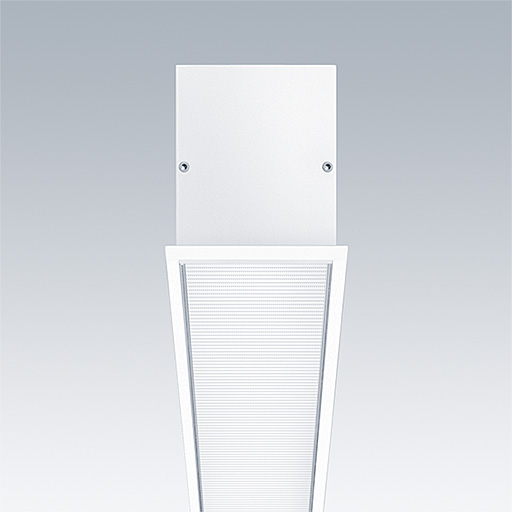

Equaline slim frame (FS) channel with optics for 2nd generation Equaline. Body: powder coated aluminium, suitable for plasterboard installation. For single and continuous installation. Continuous run with visible joints between optic pieces. Optics: Luminance reducing optic (LRO) with UGR<19 made of PMMA. Batten, end cap set and installation accessories to be ordered separately. Luminaire wired with halogen free leads.

Equaline consists of a channel, LED-batten, cover and accessories, which have to be configured and ordered separately. This product is one part of the complete configuration.

Dimensions: 1000 x 82 x 88 mm
Weight: 2.1 kg

Mode selection
  • Lamp position:4000 K HF
  • Light Source:LED
  • Luminaire luminous flux*:1690 lm
  • Luminaire efficacy*:91 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:18.6 W Power factor = 0.95
  • LED
  • CE
  • GLedReP
  • Hfree
  • IK05
  • IP40
  • LLedReP
  • Electrical class I

▼ Photometry

Photometric configuration
