  • Equaline — EQL C L3000 PM WH F

Equaline / EQL C L3000 PM WH F

96632014

▼ Data Sheet

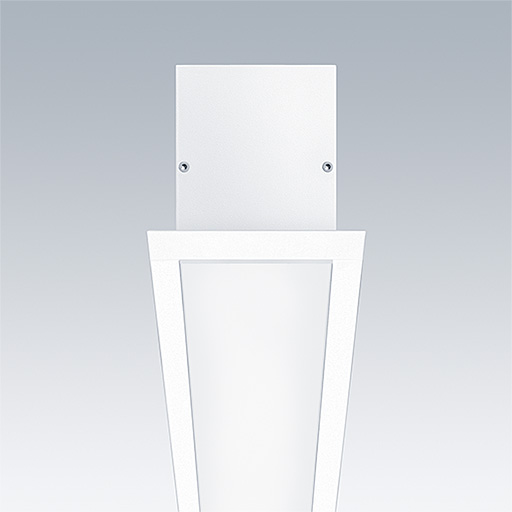

Equaline framed (F) channel with optics for 2nd generation Equaline. Body: powder coated aluminium, suitable for modular or plasterboard ceiling installation. For single and continuous installation. Optics: opal (PM) made of PMMA. Batten, end cap set and installation accessories to be ordered separately. Luminaire wired with halogen free leads.

Equaline consists of a channel, LED-batten, cover and accessories, which have to be configured and ordered separately. This product is one part of the complete configuration.

Dimensions: 3000 x 96 x 88 mm
Weight: 6.3 kg

Mode selection
  • Lamp position:4000 K HF
  • Light Source:LED
  • Luminaire luminous flux*:5960 lm
  • Luminaire efficacy*:112 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:53 W Power factor = 0.95
  • LED
  • CE
  • GLedReP
  • Hfree
  • IK05
  • IP40
  • LLedReP
  • Electrical class I

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
