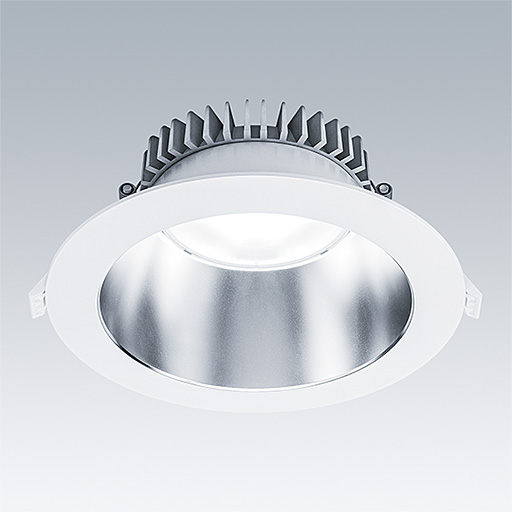

Cetus / CETUS3 L 2000-830 EHF RSB

A low height, recessed LED downlight. Suitable for ceiling cut-outs Ø190-230 mm for easy refurbishments or fast initial installations. Remote, pluggable, Fixed output LED driver with DC functionality, adjustable 50-100%, NFC configurable. Loop in - loop out possible. Body: die-cast aluminium for thermal management. Diffuser: polycarbonate, smooth reflector in satinbrite finish with wide beam. Reflector and trim: high quality, highly reflective polycarbonate. Class II electrical, IP44_IP20. Spring clips suitable for ceiling thicknesses from 1 to 35 mm. Complete with 3000K LED



Dimensions: Ø248 x 100 mm
Luminaire input power: 16.3 W
Luminaire luminous flux: 2073 lm
Luminaire efficacy: 127 lm/W
Weight: 0.79 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:2073 lm
• Luminaire efficacy*:127 lm/W
• Colour Rendering Index min.:80
• Ballast:1 x 28003812 LC 25/200-650/38 NF SR EXC3
• Correlated colour temperature*:3000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L80 50000 h at 25 °C
• Luminaire input power*:16.3 W Power factor = 0.86
• Dimming:FIX
