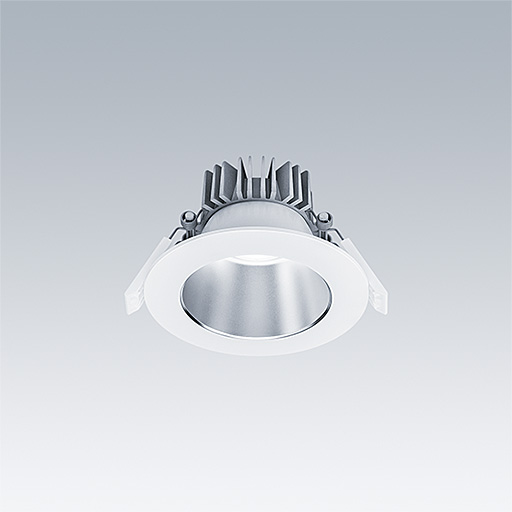

Cetus / CETUS3 S 1500-830 HFIX RSB

A low height, recessed LED downlight. Suitable for ceiling cut-outs Ø95-125 mm for easy refurbishments or fast initial installations. Remote, pluggable, DALI dimmable LED driver with DC functionality, adjustable 1-100 %, NFC configurable, SwitchDIM compatible. Loop in - loop out possible. Body: die-cast aluminium for thermal management. Diffuser: polycarbonate, smooth reflector in satinbrite finish with wide beam. Reflector and trim: high quality, highly reflective polycarbonate. Class II electrical, IP44_IP20. Spring clips suitable for ceiling thicknesses from 1 to mm. Complete with 3000K LED



Luminaire input power: 14.2 W
Luminaire luminous flux: 1432 lm
Luminaire efficacy: 101 lm/W
Weight: 0.44 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:1432 lm
• Luminaire efficacy*:101 lm/W
• Colour Rendering Index min.:80
• Ballast:1 x 28003811 LC 25/200-650/38 o4a NF SR EXC3
• Correlated colour temperature*:3000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L80 50000 h at 25 °C
• Luminaire input power*:14.2 W Power factor = 0.91
• Standby Power*:0.49 W
• Dimming:HFIX dimmable to 1%
• Maintenance category CIE 97:C - Closed Top Reflector
