Cetus / CETUS3 MSF 2000-840 EHF RWH

96634898

Change configuration

  • Base: 96634898 — CETUS3 MSF 2000-840 EHF RWH

Data Sheet

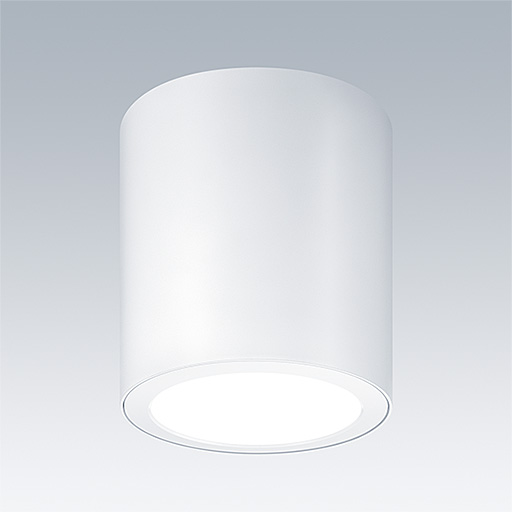

Surface mounted LED downlight. Fixed output LED driver. Body: die-cast aluminium. Diffuser: polycarbonate, smooth reflector in white finish with wide beam. Trim: high quality, highly reflective polycarbonate. Class I electrical, IP43. Installation plate to be fitted directly to ceiling, for mounting via BESA box or wire suspension use available accessory. Electrical connection via 3/5 pole, push in, terminal block, Housing mounts to installation plate with twist and lock bayonet mechanism. Complete with 4000K LED

.

Dimensions: Ø181 x 182 mm
Luminaire input power: 15.3 W
Luminaire luminous flux: 2048 lm
Luminaire efficacy: 134 lm/W
Weight: 2.59 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2048 lm
  • Luminaire efficacy*:134 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 06891966 DRV TC PRFL 22W 500mA 44V F #SC 127571
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:15.3 W Power factor = 0.94
  • Dimming:FIX
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • CE
  • GLedReP
  • 850°
  • Hfree
  • IK06
  • IP43
  • LLedReP
  • RG1
  • Electrical class I
  • Ta= -20 to +25
  • UKCA
