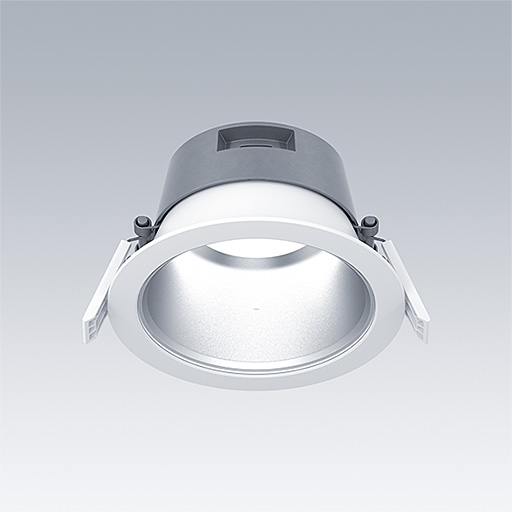

Chalice 3 / CHAL3 150 2000-840 EHF RSB IP65

A highly efficient and sustainable LED downlight with low height. Suitable for mounting in ceiling thicknesses of 1 to 40 mm and Ø150mm cut-out with spring clips. Remote, pluggable, Fixed output LED driver with DC functionality, adjustable 50-100%, NFC configurable.Loop in - loop out possible. Body: die-cast aluminium for highly efficient thermal management with recycling content >90%. Diffuser: polycarbonate. Reflector and trim: polycarbonate smooth reflector in satinbrite finish with wide beam and additional ultrasonic welded clear polycarbonate cover IP65. Class II electrical, IP65_IP20. Complete with 4000K LED



Dimensions: Ø174 x 94 mm
Luminaire input power: 16.9 W
Luminaire luminous flux: 1910 lm
Luminaire efficacy: 113 lm/W
Weight: 0.71 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:1910 lm
• Luminaire efficacy*:113 lm/W
• Colour Rendering Index min.:80
• Ballast:1 x 28003812 LC 25/200-650/38 NF SR EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L90 50000 h at 25 °C
• Luminaire input power*:16.9 W Power factor = 0.88
• Dimming:FIX
• Maintenance category CIE 97:C - Closed Top Reflector
