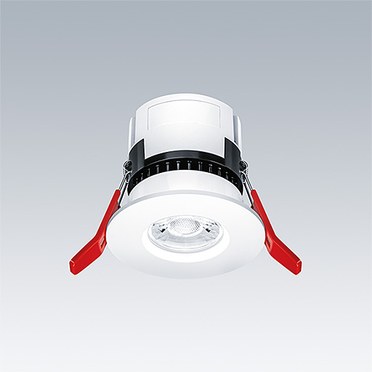

Chalice 74
The IP65 and fire-rated downlight completes our Chalice range with a smaller size for demanding environments
- IP65 from below for installation in moist environments like bathrooms
- Tool-free and flexible installation with completely detachable connector box
- Exchangeable lens and bezel for customisation on site
Materials and Finish
Housing/body material: steel with aluminium heatsink covered with a PC cap
Lens material: PMMA
Bezel material: die-cast aluminium
Bezel finish: matt white, gloss white, matt black, chrome, brushed aluminium
Installation and Mounting
Chalice 74 can be installed directly from the box into a wide range of ceiling types including thicknesses from 1mm – 25mm.
Equipped with a detachable connector which allows an easy and toolfree pre-wiring via push-fit terminal block.
New Product
LumExpress Product
eControl Product
▼ Chalice 74
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 74 LED550-830 WFL IP65 WHM | 7 | 600 | LED | 0.30 | 96631503 | ||||
| CHAL 74 LED550-840 WFL IP65 WHM | 7 | 600 | LED | 0.30 | 96631504 | ||||
| CHAL 74 LED900-830 WFL IP65 WHM | 9 | 900 | LED | 0.40 | 96631505 | ||||
| CHAL 74 LED900-840 WFL IP65 WHM | 9 | 950 | LED | 0.40 | 96631506 |
▼ Chalice 74 attachments
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 74 LENS FL | 0.02 | 96631516 | |||||||
| CHAL 74 LENS WFL | 0.02 | 96631513 | |||||||
| CHAL 74 LENS WW | 0.02 | 96631515 | |||||||
| CHAL 74 TRIM AL | 0.04 | 96631509 | |||||||
| CHAL 74 TRIM BKM | 0.04 | 96631511 | |||||||
| CHAL 74 TRIM CR | 0.04 | 96631508 | |||||||
| CHAL 74 TRIM WH | 0.04 | 96631510 | |||||||
| CHAL 74 TRIM WHM | 0.04 | 96631507 |
