  • Durolight — DUROLIGHT-R 4300-840 HF L1250

Durolight / DUROLIGHT-R 4300-840 HF L1250

96633049

▼ Data Sheet

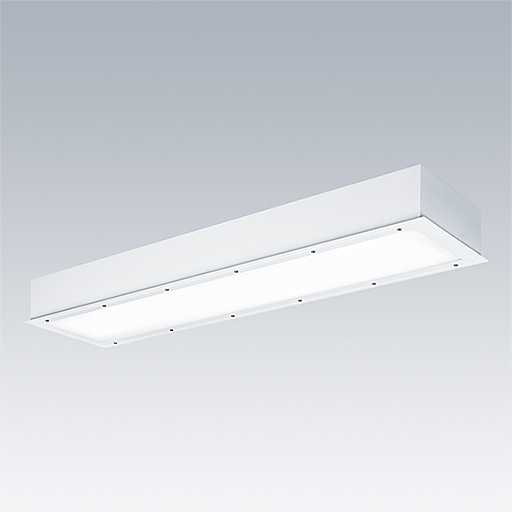

Anti-vandal Recessed LED luminaire. Electronic, fixed output control gear. IP65, IK10, Class I electrical. Body: 2mm sheet steel painted white (close to RAL9016). Gasket: non-ageing polyurethane foam. Diffuser: 3mm thick polycarbonate with outstanding impact resistance, connected and secured with tamper-resistant stainless steel twin hole screws to the body. Complete with 4000K LED

Dimensions: 1225 x 300 x 115 mm
Luminaire input power: 38 W
Luminaire luminous flux: 4253 lm
Luminaire efficacy: 112 lm/W
Weight: 14 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:4253 lm
  • Luminaire efficacy*:112 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000713 LC 75W 100-400mA flexC lp EXC
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:38 W Power factor = 0.96
  • Dimming:FO
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • CE
  • GLedNr
  • 850°
  • IK10
  • IP65
  • LLedNr
  • Electrical class I
  • SF_170
  • Ta-25-50
