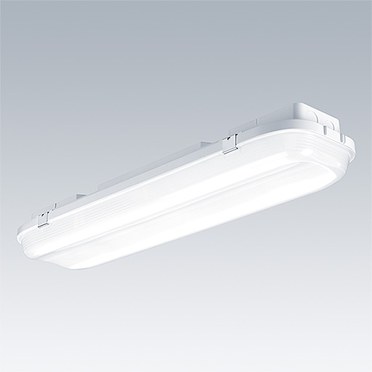

ForceLED
A robust dust, dirt and moisture and shock-proof luminaire with IP66 and IK10.
- Design: A compact and lightweight fully recycable aluminium body with a UV stabilised polycarbonate diffuser with linear prisms.
- Efficiency: High efficiency up to 150 lm/W for 3 different lumen outputs 4000, 7000 and 10,000 lm.
- Light distribution: a wide beam distribution with 8% indirect light and UGR<25 for 4000 lm

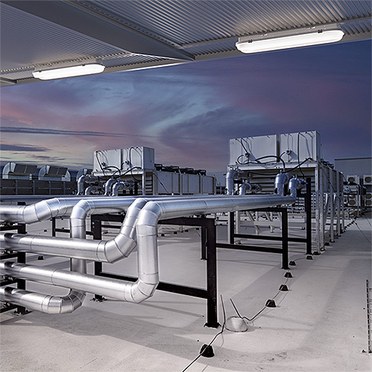

- Installation: Flexible mounting options with BESA, suspended mounting and outdoor wall mounting (see mounting instructions for details).
- ADDITIONAL OPTIONS: Dimmable (HFI), Emergency (E3, E3D), BasicDIM Wireless (BC), Sensors (MWBC, MWS), Corridor Function (COR,...), Quick Connector & Through Wiring (TW,QC3, QC5,...). See myProduct for all options.
Materials and Finish
Canopy: fully recyclable die cast aluminium painted white RAL 9010
Diffuser: UV stabilised polycarbonate with linear prisms
Gasket: silicone sponge
Fastening clips: stainless steel
Quick fix brackets: stainless steel
Installation and Mounting
For surface, suspended and BESA mounting. Quick-fix installation brackets are supplied with each luminaire for surface mounting and optional suspension kit is available (Chain 96502605 & Hook 96631103).
New Product
LumExpress Product
eControl Product
▼ ForceLED
| Description | Catalogue No. | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FORCELED 10000 840 HF QC3 | LED | 3.10 | 92984194 | |||||||
| FORCELED 10000-840 HF | E7218812 | LED | 3.00 | 96636370 | ||||||
| FORCELED 4000 840 HF QC3 | LED | 3.10 | 92984174 | |||||||
| FORCELED 4000 840 HF TW | E7218804 | LED | 3.30 | 92984177 | ||||||
| FORCELED 4000 840 MWS | LED | 3.10 | 92984181 | |||||||
| FORCELED 4000-840 HF | E7218808 | LED | 3.00 | 96636368 | ||||||
| FORCELED 7000-840 HF | E7218810 | LED | 3.00 | 96636369 |
▼ ForceLED emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| FORCELED 10000 840 HF E3 | LED | 3.30 | 92984195 | ||||||
| FORCELED 4000 840 HF E3 | LED | 3.30 | 92982625 | ||||||
| FORCELED 4000 840 MWS E3 | LED | 3.40 | 92984183 | ||||||
| FORCELED 7000 840 HF E3 | LED | 3.30 | 92983155 | ||||||
| FORCELED 7000 840 HF E3D | LED | 3.30 | 92984187 |
▼ ForceLED dimmable
| Description | Catalogue No. | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FORCELED 10000 840 BC | LED | 3.10 | 92984461 | |||||||
| FORCELED 10000 840 HFI | E7218802 | LED | 3.00 | 92983480 | ||||||
| FORCELED 10000 840 HFI QC5 | LED | 3.10 | 92984198 | |||||||
| FORCELED 4000 840 BC | LED | 3.10 | 92984182 | |||||||
| FORCELED 4000 840 CORM | LED | 3.10 | 92984184 | |||||||
| FORCELED 4000 840 HFI | E7218801 | LED | 3.00 | 92982794 | ||||||
| FORCELED 4000 840 HFI QC5 | LED | 3.10 | 92984178 | |||||||
| FORCELED 4000 840 HFI QC5TW | LED | 3.30 | 92984179 | |||||||
| FORCELED 4000 840 HFI TW | LED | 3.30 | 92984180 | |||||||
| FORCELED 7000 840 BC | LED | 3.10 | 92984191 | |||||||
| FORCELED 7000 840 CORMBC | LED | 3.10 | 92984192 | |||||||
| FORCELED 7000 840 HFI | E7218806 | LED | 3.00 | 92984188 | ||||||
| FORCELED 7000 840 HFI QC5TW | LED | 3.30 | 92984190 | |||||||
| FORCELED 7000-840 MWBC | LED | 3.10 | 92987925 |
▼ ForceLED dimmable, emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| FORCELED 10000 840 HFI E3D | LED | 3.30 | 92984196 | ||||||
| FORCELED 4000 840 HFI E3D | LED | 3.30 | 92984185 |
▼ ForceLED accessories
| Description | Catalogue No. | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FORCELED WALL MOUNTED COVER | 0.65 | 96636344 | ||||||||
| SUSPENSION CHAIN | E7070430 | 0.10 | 96502605 | |||||||
| SUSPENSION HOOKS KIT | 0.00 | 96631103 |
