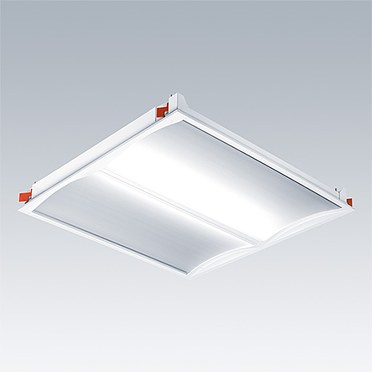

IQ Wave
Projects
MB Décor’s new development will see it into the next generation – with a little help from ThornOur next generation office luminaire features intelligent innovation in 4 key areas, design, optic, control and installation
- Design: simple and flowing lines create a modern but simplistic aesthetic perfect for an elegant office interior
- Optics: innovative MV tech optic designed by our expert optical team offers excellent uniformity and glare control, direct/indirect light for illuminance on faces and walls to encourage a comfortable, communicative working environment
- Controls: Integrated sensors allow you to create flexible control systems suited to your needs. Wireless solution controlled via App with Bluetooth® 4.x - basicDim Wireless. Also available are integrated PIR and microwave sensors.
- Installation: with our new red flag design you can easily access the pull up set from below the ceiling without the need to remove the optics from the product, allowing for a more secure fixing to the ceiling
Materials and Finish
Frame and end caps: polycarbonate
Diffuser: polycarbonate, aluminium designed heatsink
Body: highly reflective steel coffer
Gear tray: pre-coated white steel
Installation and Mounting
Suitable for lay in, with accessory suitable for pull up into concealed grid and plasterboard ceilings.
New Product
LumExpress Product
eControl Product
▼ IQ Wave
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE LED3100-830 HF Q597 MRE | 30 | 3050 | E7077510 | LED | 3.80 | 96628132 | ||||
| IQ WAVE LED3100-840 HF Q597 MRE | 30 | 3200 | E7077511 | LED | 3.80 | 96628133 | ||||
| IQ WAVE LED4100-830 HF Q597 MRE | 40 | 4050 | E7077513 | LED | 3.80 | 96628135 | ||||
| IQ WAVE LED4100-840 HF Q597 MRE | 40 | 4250 | E7077514 | LED | 3.80 | 96628136 |
▼ IQ Wave, basicDIM
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE LED4100-840 BC Q597 MRE | 40 | 4250 | E7077577 | LED | 3.80 | 96631044 |
▼ IQ Wave configured articles
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE LED3100-830 HFIX Q597 MRE ML5 | 30 | 3050 | LED | 3.80 | 96628294 | |||||
| IQ WAVE LED3100-840 HF MWS Q597 MRE | 30 | 3200 | LED | 3.80 | 92900292 | |||||
| IQ WAVE LED4100-830 HFIX Q597 MRE ML5 | 40 | 4050 | 96628295 | LED | 3.80 | 96628295 | ||||
| IQ WAVE LED4100-840 HF MWS Q597 MRE | 40 | 4250 | LED | 3.80 | 92900249 |
▼ IQ Wave configured articles, dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE LED3100-830 HFIX Q597 MRE | 30 | 3050 | LED | 3.80 | 92900298 | |||||
| IQ WAVE LED3100-840 HFIX Q597 MRE | 30 | 3200 | E7077516 | LED | 3.80 | 96628313 | ||||
| IQ WAVE LED3100-840 HFSX Q597 MRE | 30 | 3200 | LED | 3.90 | 92900319 | |||||
| IQ WAVE LED4100-830 HFIX Q597 MRE | 40 | 4050 | 92900339 | LED | 3.80 | 92900339 | ||||
| IQ WAVE LED4100-830 HFSX Q597 MRE | 40 | 4050 | LED | 3.90 | 92900247 | |||||
| IQ WAVE LED4100-840 HFIX Q597 MRE | 40 | 4250 | E7077517 | LED | 3.80 | 96628314 | ||||
| IQ WAVE LED4100-840 HFSX Q597 MRE | 40 | 4250 | LED | 3.90 | 92900265 |
▼ IQ Wave, dimmable, emergency
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE LED3100-830 HFIX E3 Q597 MRE | 30 | 3050 | LED | 4.40 | 92900336 | ||||
| IQ WAVE LED3100-830 HFIX E3TX Q597 MRE | 30 | 3050 | LED | 4.40 | 92900305 | ||||
| IQ WAVE LED3100-840 HFIX E3 Q597 MRE | 30 | 3200 | LED | 4.40 | 92900290 | ||||
| IQ WAVE LED3100-840 HFIX E3TX Q597 MRE | 30 | 3200 | LED | 4.40 | 92900246 | ||||
| IQ WAVE LED4100-830 HFIX E3 Q597 MRE | 40 | 4050 | LED | 4.40 | 92900340 | ||||
| IQ WAVE LED4100-830 HFIX E3TX Q597 MRE | 40 | 4050 | LED | 4.40 | 92900341 | ||||
| IQ WAVE LED4100-840 HFIX E3 Q597 MRE | 40 | 4250 | LED | 4.40 | 92900266 | ||||
| IQ WAVE LED4100-840 HFIX E3TX Q597 MRE | 40 | 4250 | LED | 4.40 | 92900294 |
▼ IQ Wave accessory
| Description | Catalogue No. | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE RED FLAG PULL UP KIT | E7077518 | 0.04 | 96628290 | |||||||
| REMOTECONTROL IR6 | 0.02 | 28000647 |
