  • Omega Circular — OMEGA C LED1500-840 HFIX R300

Omega Circular / OMEGA C LED1500-840 HFIX R300

96631491

▼ Data Sheet

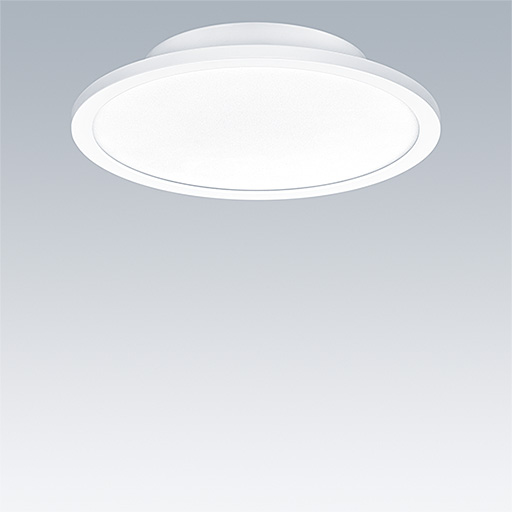

A versatile, circular edge lit panel for recessed mounting in a Ø200mm cutout. Electronic, DALI dimmable control gear. Class I electrical, IP20. Body: aluminium and steel, white (RAL 9016). Diffuser: acrylic opal. Complete with 4000K LED.

Dimensions: Ø300 x 55 mm
Luminaire input power: 19.5 W
Luminaire luminous flux: 1551 lm
Luminaire efficacy: 80 lm/W
Weight: 2.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1551 lm
  • Luminaire efficacy*:80 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000665 LCA 25W 350-1050mA one4all C PRE
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L70 50000 h at 25 °C
  • Luminaire input power*:19.5 W
  • Standby Power*:0.2 W
  • Dimming:DA2
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • GLedReP
  • IK02
  • IP20
  • LLedNr
  • Electrical class I
  • Ta = 0 to +25

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
