Omega Moduline / OMEGA M 4800-940 HFIX WHG Q600
96636529
▼ Data Sheet

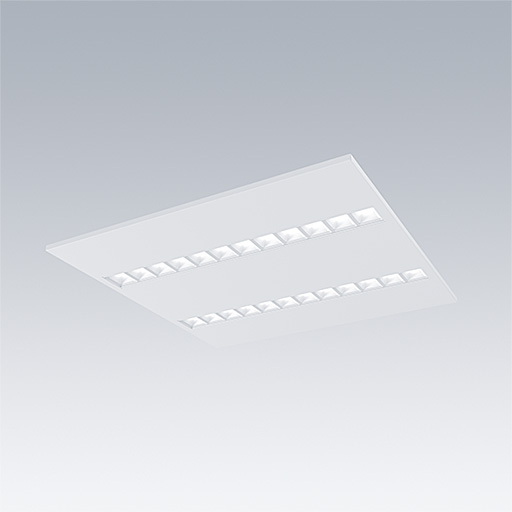

A sustainable LED panel utilising replaceable modular linear LED light sources and driver for office and education applications. Each complete LED module can be easily replaced tool-free and offers a simple click-in mechanism, this allows a change of LED modules at end of life or the change of colour temperature or colour rendering if desired. A combination of deep cells with primary lenses provides high quality lighting with even light distribution and efficient glare control at very high brightness of the LED modules. Electronic, DALI-2 dimmable. Class II electrical, IP20, Impact strength: IK03. Body: white. LED module reflector finished in white. Suitable for recessed lay in grid ceilings as standard and when combined with additional accessories will allow installation in concealed ceilings, plasterboard ceilings, surface-mounted and suspended. All accessories need to be ordered separately. Rated median useful life: L90 50000 h at 25 °C. Colour Rendering Index min.: 90 Complete with 4000K LED.
Dimensions: 597 x 597 x 33 mm
Luminaire input power: 32.7 W
Luminaire luminous flux: 4300 lm
Luminaire efficacy: 131 lm/W
Weight: 2.65 kg
- LED
- a = 5 to +40
- CE
- GLedReP
- IK03
- IP20
- LLedReP
- SC2 - Protection Class 2
