  • Omega Pro 2 — OP2 3800-840 HX HFIX 3X12

Omega Pro 2 / OP2 3800-840 HX HFIX 3X12

92913224

▼ Data Sheet

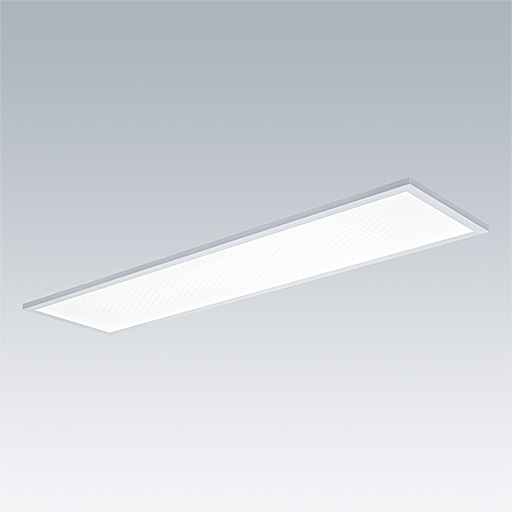

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, DALI-2 dimmable. Class II electrical, IP40_IP20, Impact strength: IK03. Body: sheet steel, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate hexagonal comfort optic. Electrical connection via piano key terminals, loop-in/loop-out possible. Complete with 4000K LED, Colour Rendering Index min.: 80



Dimensions: 1197 x 297 x 57 mm
Luminaire input power: 27.4 W
Luminaire luminous flux: 3800 lm
Luminaire efficacy: 139 lm/W
Weight: 5.28 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3800 lm
  • Luminaire efficacy*:139 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000672 LCA 45W 500-1400mA one4all SR PRE
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:27.4 W Power factor = 0.98
  • Standby Power*:0.15 W
  • Dimming:Dali2Dim dimmable to 10%
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • Einb_NDaeMat
  • ENEC11
  • GLedReP
  • 650°
  • IK03
  • IP40_IP20
  • LLedNr
  • RG0
  • SC2 - Protection Class 2
  • Ta=0°C_to_+35°C

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
