Omega Pro 2 / OP2 4400-840 OP HFIX Q600

92913467

▼ Data Sheet

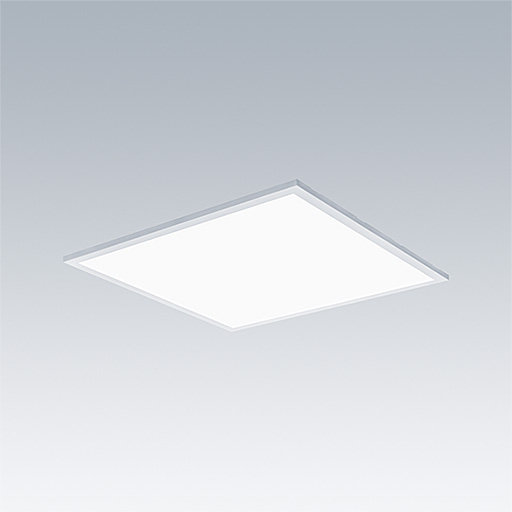

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, DALI-2 dimmable. Class II electrical, IP44_IP20, Impact strength: IK03. Body: sheet steel, finished white (close to RAL9016). Diffuser: UV-stabilised polymethylmethacrylate opal optic for wide light distribution. Electrical connection via piano key terminals, loop-in/loop-out possible. Complete with 4000K LED, Colour Rendering Index min.: 80



Dimensions: 597 x 597 x 55 mm
Luminaire input power: 35 W
Luminaire luminous flux: 4250 lm
Luminaire efficacy: 121 lm/W
Weight: 5.05 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:4250 lm
  • Luminaire efficacy*:121 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000672 LCA 45W 500-1400mA one4all SR PRE
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:35 W Power factor = 0.98
  • Standby Power*:0.15 W
  • Dimming:Dali2Dim dimmable to 10%
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • Einb_NDaeMat
  • GLedReP
  • 650°
  • IK03
  • IP44_IP20
  • LLedNr
  • RG0
  • SC2 - Protection Class 2
