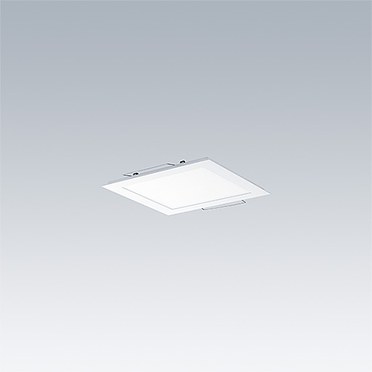

Omega Pro 2 Mini
Complimentary office lighting solution
- Modular square luminaire with pre-fitted springs for easy installation into modular or plasterboard ceilings / walls; surface mounting options are available too via an additional mounting box
- Two optics ensure tailor made lighting results, either for corridors and circulation areas (UGR22, OP) or for extended office areas or assembly spaces (UGR19 @ 900 lm; UGR22 @ 1800 lm, MPT)
- To influence the room ambience, two colour temperatures - warm white (3000K) and neutral (4000K) - are available in high CRI (>90) to ensure the right lit quality
- Furthermore, the family is featuring emergency units and can be connected to building management systems via DALI (HFIX) or BDW (BC)
Materials and Finish
Frame: mild sheet steel, white (RAL9016)
Back: mild sheet steel, galvanised
Diffuser: OP = UV-stabilized PMMA, MPT = UV-stabilized PC
Installation and Mounting
Lay-in: Omega Pro LED is suitable for lay-in installation into 300mm modular ceilings with 15mm or 24mm exposed T grid.
Plasterboard ceilings: Each product is pre-equipped with loaded springs for easy installation into plasterboard ceilings without the need for any further modification.
Surface mounting: collar type - fixed to the ceiling with 4 screws via keyhole slots, product to be laid in.
New Product
LumExpress Product
eControl Product
▼ Omega Pro 2 Mini, OP optic
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| OP2 1800-930 OP HFIX Q300 MRP | LED | 1.46 | 96634317 | ||||||
| OP2 1800-940 OP HF Q300 MRP | LED | 1.46 | 96634314 | ||||||
| OP2 1800-940 OP HFIX Q300 MRP | LED | 1.46 | 96634318 | ||||||
| OP2 900-940 OP HF Q300 MRP | LED | 1.43 | 96634312 | ||||||
| OP2 1800-930 OP HF Q300 MRP | LED | 1.46 | 96634313 |
▼ Omega Pro 2 Mini, MPT optic
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| OP2 1800-940 MPT BC Q300 MRP | LED | 1.25 | 96634476 | ||||||
| OP2 900-940 MPT HF Q300 MRP | LED | 1.13 | 96634429 | ||||||
| OP2 1800-940 MPT HFIX Q300 MRP | LED | 1.46 | 96634417 | ||||||
| OP2 900-940 MPT HFIX Q300 MRP | LED | 1.43 | 96634416 |
▼ Omega Pro 2 Mini, accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| OP2 SURFACE MOUNTING KIT Q300 | 1.55 | 96634437 |
