Graffiti
LED spotlight for 3-phase track installations or CONTUS continuous-row systems
- GRAFFITI offers two lumen packages in one compact size (Ø95mm) 2800lm and 3600lm in CRI>90 and in two colour temperatures 3.000K and 4.000K
- Available for both key lighting infrastructures: 3-phase track and Thorn CONTUS trunking
- High-quality, low-glare spotlight for Retail applications with up to 130lm/W for reduced energy cost
- Integrated in-house driver for an overall clean design aesthetic
Materials and Finish
Housing: Die-cast aluminium
Colour: Black or white microtextured paint
Fronting: Black
Reflector: Aluminium sputtered PC reflector
Installation and Mounting

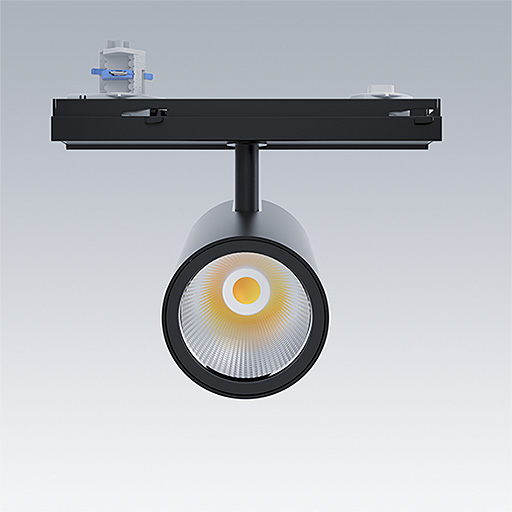

3GU version: spotlight can be installed and de-installed tool free via 3-phase track adapter
Wall mounting not permitted; not suitable for point outlet

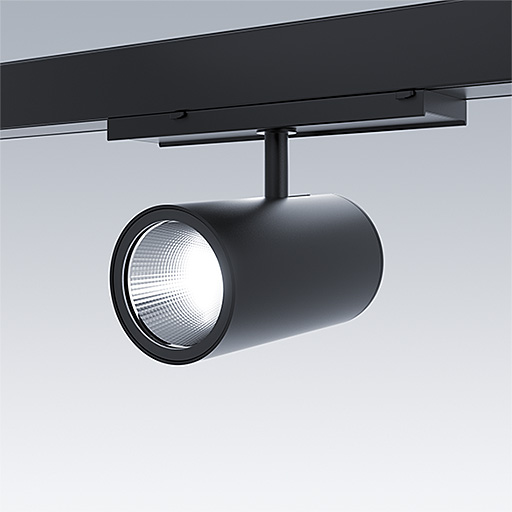

CONTUS version: spotlight fixed via CONTUS to the trunking using CLIX technology
New Product
LumExpress Product
eControl Product
▼ Graffiti, 3GU spot
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| GRAFFITI 2800-930HE SWI 3GU FL BK | LED | 0.71 | 96108754 | ||||||
| GRAFFITI 2800-930HE SWI 3GU SP BK | LED | 0.71 | 96108753 | ||||||
| GRAFFITI 2800-930HE SWI 3GU SP BK 12X | LED | 0.71 | 96108717 | ||||||
| GRAFFITI 2800-930HE SWI 3GU SP WH | LED | 0.71 | 96108750 | ||||||
| GRAFFITI 2800-930HE SWI 3GU SP WH 12X | LED | 0.71 | 96108714 | ||||||
| GRAFFITI 2800-940HE HF 3GU SP WH 12X | LED | 0.71 | 96108720 | ||||||
| GRAFFITI 2800-940HE SWI 3GU SP BK | LED | 0.71 | 96108759 | ||||||
| GRAFFITI 2800-940HE SWI 3GU SP BK 12X | LED | 0.71 | 96108723 | ||||||
| GRAFFITI 2800-940HE SWI 3GU SP WH | LED | 0.71 | 96108756 | ||||||
| GRAFFITI 3600-930HE SWI 3GU SP BK | LED | 0.71 | 96108765 | ||||||
| GRAFFITI 3600-930HE SWI 3GU SP BK 12X | LED | 0.71 | 96108729 | ||||||
| GRAFFITI 3600-930HE SWI 3GU SP WH | LED | 0.71 | 96108762 | ||||||
| GRAFFITI 3600-930HE SWI 3GU SP WH 12X | LED | 0.71 | 96108726 | ||||||
| GRAFFITI 3600-940HE SWI 3GU SP BK | LED | 0.71 | 96108771 | ||||||
| GRAFFITI 3600-940HE SWI 3GU SP BK 12X | LED | 0.71 | 96108735 | ||||||
| GRAFFITI 3600-940HE SWI 3GU SP WH | LED | 0.71 | 96108768 | ||||||
| GRAFFITI 3600-940HE SWI 3GU SP WH 12X | LED | 0.71 | 96108732 |
▼ Graffiti, 3GU flood
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| GRAFFITI 2800-930HE SWI 3GU FL BK 12X | LED | 0.71 | 96108718 | ||||||
| GRAFFITI 2800-930HE SWI 3GU FL WH | LED | 0.71 | 96108751 | ||||||
| GRAFFITI 2800-930HE SWI 3GU FL WH 12X | LED | 0.71 | 96108715 | ||||||
| GRAFFITI 2800-940HE SWI 3GU FL BK | LED | 0.71 | 96108760 | ||||||
| GRAFFITI 2800-940HE SWI 3GU FL BK 12X | LED | 0.71 | 96108724 | ||||||
| GRAFFITI 2800-940HE SWI 3GU FL WH | LED | 0.71 | 96108757 | ||||||
| GRAFFITI 2800-940HE SWI 3GU FL WH 12X | LED | 0.71 | 96108721 | ||||||
| GRAFFITI 3600-930HE SWI 3GU FL BK | LED | 0.71 | 96108766 | ||||||
| GRAFFITI 3600-930HE SWI 3GU FL BK 12X | LED | 0.71 | 96108730 | ||||||
| GRAFFITI 3600-930HE SWI 3GU FL WH | LED | 0.71 | 96108763 | ||||||
| GRAFFITI 3600-930HE SWI 3GU FL WH 12X | LED | 0.71 | 96108727 | ||||||
| GRAFFITI 3600-940HE SWI 3GU FL BK | LED | 0.71 | 96108772 | ||||||
| GRAFFITI 3600-940HE SWI 3GU FL BK 12X | LED | 0.71 | 96108736 | ||||||
| GRAFFITI 3600-940HE SWI 3GU FL WH | LED | 0.71 | 96108769 | ||||||
| GRAFFITI 3600-940HE SWI 3GU FL WH 12X | LED | 0.71 | 96108733 |
▼ Graffiti, 3GU wide flood
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| GRAFFITI 2800-930HE SWI 3GU WFL BK | LED | 0.71 | 96108755 | ||||||
| GRAFFITI 2800-930HE SWI 3GU WFL BK 12X | LED | 0.71 | 96108719 | ||||||
| GRAFFITI 2800-930HE SWI 3GU WFL WH | LED | 0.71 | 96108752 | ||||||
| GRAFFITI 2800-930HE SWI 3GU WFL WH 12X | LED | 0.71 | 96108716 | ||||||
| GRAFFITI 2800-940HE SWI 3GU WFL BK | LED | 0.71 | 96108761 | ||||||
| GRAFFITI 2800-940HE SWI 3GU WFL BK 12X | LED | 0.71 | 96108725 | ||||||
| GRAFFITI 2800-940HE SWI 3GU WFL WH | LED | 0.71 | 96108758 | ||||||
| GRAFFITI 2800-940HE SWI 3GU WFL WH 12X | LED | 0.71 | 96108722 | ||||||
| GRAFFITI 3600-930HE SWI 3GU WFL BK | LED | 0.71 | 96108767 | ||||||
| GRAFFITI 3600-930HE SWI 3GU WFL BK 12X | LED | 0.71 | 96108731 | ||||||
| GRAFFITI 3600-930HE SWI 3GU WFL WH | LED | 0.71 | 96108764 | ||||||
| GRAFFITI 3600-930HE SWI 3GU WFL WH 12X | LED | 0.71 | 96108728 | ||||||
| GRAFFITI 3600-940HE SWI 3GU WFL BK | LED | 0.71 | 96108773 | ||||||
| GRAFFITI 3600-940HE SWI 3GU WFL BK 12X | LED | 0.71 | 96108737 | ||||||
| GRAFFITI 3600-940HE SWI 3GU WFL WH | LED | 0.71 | 96108770 | ||||||
| GRAFFITI 3600-940HE SWI 3GU WFL WH 12X | LED | 0.71 | 96108734 |
▼ Graffiti, CONT spot
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| GRAFFITI 3600-930HE SWI CONT SP BK | LED | 0.85 | 96108777 | ||||||
| GRAFFITI 3600-930HE SWI CONT SP BK 12X | LED | 0.85 | 96108741 | ||||||
| GRAFFITI 3600-930HE SWI CONT SP WH | LED | 0.85 | 96108774 | ||||||
| GRAFFITI 3600-930HE SWI CONT SP WH 12X | LED | 0.85 | 96108738 | ||||||
| GRAFFITI 3600-940HE SWI CONT SP BK | LED | 0.85 | 96108783 | ||||||
| GRAFFITI 3600-940HE SWI CONT SP BK 12X | LED | 0.85 | 96108747 | ||||||
| GRAFFITI 3600-940HE SWI CONT SP WH | LED | 0.85 | 96108780 | ||||||
| GRAFFITI 3600-940HE SWI CONT SP WH 12X | LED | 0.85 | 96108744 |
▼ Graffiti, CONT flood
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| GRAFFITI 3600-930HE SWI CONT FL BK | LED | 0.85 | 96108778 | ||||||
| GRAFFITI 3600-930HE SWI CONT FL BK 12X | LED | 0.85 | 96108742 | ||||||
| GRAFFITI 3600-930HE SWI CONT FL WH | LED | 0.85 | 96108775 | ||||||
| GRAFFITI 3600-930HE SWI CONT FL WH 12X | LED | 0.85 | 96108739 | ||||||
| GRAFFITI 3600-940HE SWI CONT FL BK | LED | 0.85 | 96108784 | ||||||
| GRAFFITI 3600-940HE SWI CONT FL BK 12X | LED | 0.85 | 96108748 | ||||||
| GRAFFITI 3600-940HE SWI CONT FL WH | LED | 0.85 | 96108781 | ||||||
| GRAFFITI 3600-940HE SWI CONT FL WH 12X | LED | 0.85 | 96108745 |
▼ Graffiti, CONT wide flood
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| GRAFFITI 3600-930HE SWI CONT WFL BK | LED | 0.85 | 96108779 | ||||||
| GRAFFITI 3600-930HE SWI CONT WFL BK 12X | LED | 0.85 | 96108743 | ||||||
| GRAFFITI 3600-930HE SWI CONT WFL WH | LED | 0.85 | 96108776 | ||||||
| GRAFFITI 3600-930HE SWI CONT WFL WH 12X | LED | 0.85 | 96108740 | ||||||
| GRAFFITI 3600-940HE SWI CONT WFL BK | LED | 0.85 | 96108785 | ||||||
| GRAFFITI 3600-940HE SWI CONT WFL BK 12X | LED | 0.85 | 96108749 | ||||||
| GRAFFITI 3600-940HE SWI CONT WFL WH | LED | 0.85 | 96108782 | ||||||
| GRAFFITI 3600-940HE SWI CONT WFL WH 12X | LED | 0.85 | 96108746 |
▼ Graffiti, accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| GRAFFITI HONEYCOMB LOUVRE BK | 0.03 | 96108656 | |||||||
| GRAFFITI PROTECTION GLASS | 0.04 | 96108657 |
