  • Equaline Mini — EQUAMINI L1180 LED1900-830

Equaline Mini / EQUAMINI L1180 LED1900-830

96630767

▼ Data Sheet

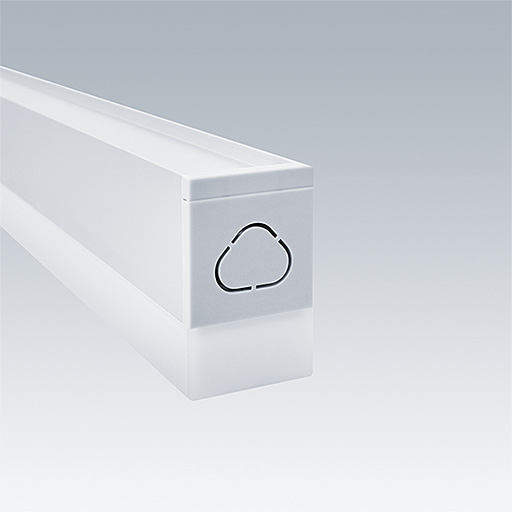

A slim Surface mounted LED batten luminaire. Electronic, fixed output control gear. Class I electrical. IP20, IK06. Body: extruded aluminium anodised finish. Diffuser: opal polycarbonate plastic. End-cap: Dual-colour injected polycarbonate plastic. Electrical connection via flap in rear of body. Continuous linking possible. Complete with 3000K LED

Dimensions: 1180 x 37 x 60 mm
Luminaire input power: 17.8 W
Luminaire luminous flux: 2045 lm
Luminaire efficacy: 115 lm/W
Weight: 1.05 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2045 lm
  • Luminaire efficacy*:115 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28002472 EQUAMINI L580 LED950-830
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):4
  • Rated median useful life*:L70 50000 h at 25 °C
  • Luminaire input power*:17.8 W
  • Dimming:FO
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • GLedReP
  • IK06
  • IP20
  • LLedReP
  • Electrical class I
  • Ta=35°C

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
