  • Glacier II — GLAC2 L LED3 3500-830 HFIX E3 BK PC PR

Glacier II / GLAC2 L LED3 3500-830 HFIX E3 BK PC PR

96632461

▼ Data Sheet

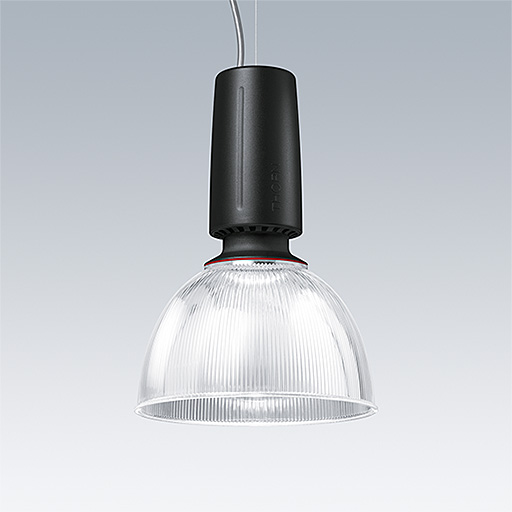

A modern and efficient LED pendant luminaire. DALI dimmable control gear with 3 hour, manual test, emergency lighting circuit. Housing: die-cast aluminium with satin black finish. Reflector: prismatic polycarbonate with easy bayonet mount connection to housing. Class I electrical, IP20. Suspended via adjustable quick-lock 2.5m single wire suspension (supplied). Pre-wired with braided, flame retardent silicone cable, 6 x 0.75mm². Complete with 3000K LED

Dimensions: Ø340/140 x 485 mm
Luminaire input power: 27 W
Weight: 5.3 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3400 lm
  • Total emergency luminous flux:105 lm
  • Luminaire efficacy*:126 lm/W
  • Colour Rendering Index min.:80
  • Ballast 1:1 x 28000666 LCA 45W 500-1400mA one4all C PRE
  • Ballast 2:1 x 89800575 EM TR EM converterLED BASIC 202 MH/LiFeP
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:27 W Power factor = 0.96
  • Charging power:4 W
  • Dimming:DA2 dimmable to 1%
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • CE
  • EN 55015
  • GLedReP
  • 850°
  • IP20
  • LLedNr
  • Electrical class I
  • Ta=25

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
