  • Glacier II — GLAC2 L LED3 3500-840 HFIX E3 GY PC PR

Glacier II / GLAC2 L LED3 3500-840 HFIX E3 GY PC PR

96632464

▼ Data Sheet

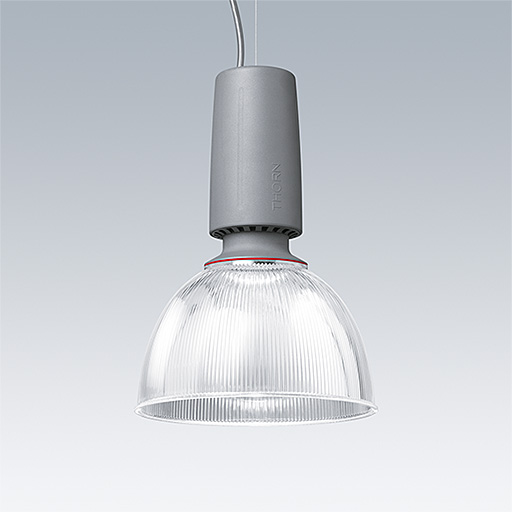

A modern and efficient LED pendant luminaire. DALI dimmable control gear with 3 hour, manual test, emergency lighting circuit. Housing: die-cast aluminium with satin grey finish. Reflector: prismatic polycarbonate with easy bayonet mount connection to housing. Class I electrical, IP20. Suspended via adjustable quick-lock 2.5m single wire suspension (supplied). Pre-wired with braided, flame retardent silicone cable, 6 x 0.75mm². Complete with 4000K LED

Dimensions: Ø340/140 x 485 mm
Luminaire input power: 27 W
Weight: 5.3 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3500 lm
  • Total emergency luminous flux:105 lm
  • Luminaire efficacy*:130 lm/W
  • Colour Rendering Index min.:80
  • Ballast 1:1 x 28000666 LCA 45W 500-1400mA one4all C PRE
  • Ballast 2:1 x 89800575 EM TR EM converterLED BASIC 202 MH/LiFeP
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:27 W Power factor = 0.96
  • Charging power:4 W
  • Dimming:DA2 dimmable to 1%
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • CE
  • EN 55015
  • GLedReP
  • 850°
  • IP20
  • LLedNr
  • Electrical class I
  • Ta=25

▼ Photometry

Photometric configuration
