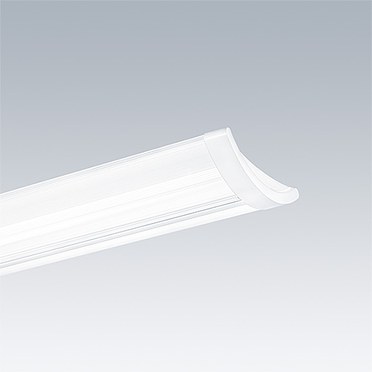

IQ Wave SP
Projects
Milan law firm’s office gets lift from new lighting
A comprehensive lighting solution that supports learning at this primary schoolComfort without compromise for office & education. A logical range extension to the IQ wave family for surface and suspended
- Design: Form follows function. Simple and flowing lines create a modern but simplistic aesthetic.
- Optics: Innovative and Thorn patented MV tech optic offers excellent uniformity and glare control, direct/indirect light for illuminance on faces and walls to encourage a comfortable, communicative working environment.
- Controls: Integrated sensors allow you to create flexible control systems suited to your needs. Wireless solution controlled via App with Bluetooth® 4.x - basicDim Wireless. Also available are integrated PIR and microwave sensors.
- Additional sensor, controls, wireless, wiring and mounting options are available through myProduct
- Versions adapted for mounting onto Contus trunking available.
Materials and Finish
Frame and end caps: polycarbonate.
Diffuser and body: polycarbonate, aluminium heatsink.
Gear tray: pre-coated white steel with polycarbonate endcaps.
Contus adapter: pre-coated roll form steel, white (similar to RAL9016).
Installation and Mounting
Suspended:
Suitable for suspension with included Y suspension Kit and pre-assembled power cord.
Surface:
Suitable for direct surface or BESA mounting, central or end-cap cable entries.
Continuous run:
Standard products can be connected via optional continuous run Kit. Through wiring versions are available.
Contus Trunking:
Versions adapted for Contus trunking come pre-assembled, ready to fit quickly and easily with twist & lock mechanical/electrical connections.
New Product
LumExpress Product
eControl Product
▼ IQ Wave Surface, dimmable
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED4250-830 HFIX | LED | 5.00 | 96628944 | ||||||
| IQ SURF L LED4250-840 HFIX | LED | 5.00 | 96628945 | ||||||
| IQ SURF L LED4900-830 HFIX | LED | 5.00 | 96628946 | ||||||
| IQ SURF L LED4900-840 HFIX | LED | 5.00 | 96628947 | ||||||
| IQ SURF L LED6700-830 HFIX | LED | 5.00 | 96628948 | ||||||
| IQ SURF L LED6700-840 HFIX | LED | 5.00 | 96628949 | ||||||
| IQ SURF S LED2600-830 HFIX | LED | 4.10 | 96628940 | ||||||
| IQ SURF S LED2600-840 HFIX | LED | 4.10 | 96628941 | ||||||
| IQ SURF S LED4250-830 HFIX | LED | 4.10 | 96628942 | ||||||
| IQ SURF S LED4250-840 HFIX | LED | 4.10 | 96628943 |
▼ IQ Wave Surface, dimmable (variants)
| Description | Catalogue No. | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED4250-830 HFIX ASY | LED | 5.10 | 96629837 | |||||||
| IQ SURF L LED4250-840 HFIX ASY | LED | 5.10 | 96629836 | |||||||
| IQ SURF L LED4900-840 BC | E7077578 | LED | 5.10 | 96631045 | ||||||
| IQ SURF L LED6700-830 HFIX ASY | LED | 5.10 | 96629310 |
▼ IQ Wave Surface, dimmable, emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED4250-840 HFIX E3-B | LED | 5.70 | 96629833 | ||||||
| IQ SURF L LED4900-840 HFIX E3-B | LED | 5.70 | 96629834 | ||||||
| IQ SURF L LED6700-840 HFIX E3-B | LED | 5.70 | 96629835 | ||||||
| IQ SURF L LED6700-840 HFIX E3TX-B | LED | 5.70 | 96629296 | ||||||
| IQ SURF L LED6700-840 HFIX E3TX-C | LED | 5.70 | 96629295 | ||||||
| IQ SURF S LED2600-840 HFIX E3-B | LED | 4.70 | 96629831 | ||||||
| IQ SURF S LED4250-840 HFIX E3-B | LED | 4.70 | 96629832 |
▼ IQ Wave Surface
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED4250-830 HF | LED | 4.90 | 96629270 | ||||||
| IQ SURF L LED4250-840 HF WH | LED | 4.90 | 96629271 | ||||||
| IQ SURF L LED4900-830 HF | LED | 4.90 | 96629272 | ||||||
| IQ SURF L LED4900-840 HF WH | LED | 4.90 | 96629273 | ||||||
| IQ SURF L LED6700-830 HF | LED | 4.90 | 96629274 | ||||||
| IQ SURF L LED6700-840 HF ASY | LED | 4.90 | 96629309 | ||||||
| IQ SURF L LED6700-840 HF WH | LED | 4.90 | 96629275 | ||||||
| IQ SURF S LED2600-830 HF | LED | 4.00 | 96629266 | ||||||
| IQ SURF S LED2600-840 HF WH | LED | 4.00 | 96629267 | ||||||
| IQ SURF S LED4250-830 HF | LED | 4.00 | 96629268 | ||||||
| IQ SURF S LED4250-840 HF WH | LED | 4.00 | 96629269 |
▼ IQ Wave Surface, emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED4250-840 HF E3-B | LED | 5.50 | 92902793 | ||||||
| IQ SURF L LED4250-840 HF E3-C | LED | 5.00 | 92901912 | ||||||
| IQ SURF L LED4900-830 HF E3-C WH | LED | 5.00 | 92907054 | ||||||
| IQ SURF L LED4900-840 HF E3 TW | LED | 5.00 | 92901703 | ||||||
| IQ SURF L LED4900-840 HF E3-B WH | LED | 5.00 | 92906599 | ||||||
| IQ SURF L LED4900-840 HF E3-C | LED | 5.00 | 92902259 | ||||||
| IQ SURF L LED6700-840 HF E3-B | LED | 4.60 | 92904837 | ||||||
| IQ SURF L LED6700-840 HF E3TX-B WH | LED | 4.60 | 92907855 | ||||||
| IQ SURF L LED6700-840 HF E3TX-C WH | LED | 4.60 | 92909350 | ||||||
| IQ SURF S LED2600-840 HF E3-B | LED | 4.10 | 92902800 | ||||||
| IQ SURF S LED2600-840 HF E3-C | LED | 4.10 | 92901823 | ||||||
| IQ SURF S LED4250-840 HF E3-B | LED | 4.60 | 96629294 | ||||||
| IQ SURF S LED4250-840 HF E3-C | LED | 4.60 | 96629292 |
▼ IQ Wave Surface, sensor
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED6700-840 HFSX | LED | 5.10 | 96629305 | ||||||
| IQ SURF L LED6700-840 MWS | LED | 5.10 | 96629301 | ||||||
| IQ SURF S LED4250-840 MWS | LED | 4.10 | 96629300 |
▼ IQ Wave Suspended, dimmable
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-830 HFIX ML5 | LED | 4.40 | 96628950 | ||||||
| IQ SUSP S LED2600-840 HFIX ML5 | LED | 4.40 | 96628951 | ||||||
| IQ SUSP S LED4250-830 HFIX ML5 | LED | 4.40 | 96628952 | ||||||
| IQ SUSP S LED4250-840 HFIX ML5 WH | LED | 4.40 | 96628953 | ||||||
| IQ SUSP S LED4900-830 HFIX ML5 | LED | 4.40 | 96628954 | ||||||
| IQ SUSP S LED4900-840 HFIX ML5 | LED | 4.40 | 96628955 | ||||||
| IQ SUSP S LED6700-830 HFIX ML5 | LED | 4.40 | 96628956 | ||||||
| IQ SUSP S LED6700-840 HFIX ML5 WH | LED | 4.40 | 96628957 |
▼ IQ Wave Suspended, dimmable (variants)
| Description | Catalogue No. | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-830 HFIX HU ML5 | E7016830 | LED | 4.50 | 96629838 | ||||||
| IQ SUSP S LED4250-830 HFIX HU SWD ML3 | E7016831 | LED | 4.50 | 96629308 | ||||||
| IQ SUSP S LED4900-830 HFIX HU ML5 | E7016832 | LED | 4.50 | 96629843 | ||||||
| IQ SUSP S LED4900-830 HFIX SWD SR2 | LED | 5.20 | 92901626 | |||||||
| IQ SUSP S LED4900-840 BC ML3 | E7077579 | LED | 4.50 | 96631046 | ||||||
| IQ SUSP S LED6700-840 BC ML3 | E7077580 | LED | 4.50 | 96631047 | ||||||
| IQ SUSP S LED6700-840 HFIX HU ML5 | E7016833 | LED | 4.50 | 96629846 |
▼ IQ Wave Suspended, dimmable, emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED4250-830 HFIX E3 ML6 | LED | 5.10 | 96629840 | ||||||
| IQ SUSP S LED4250-840 HFIX E3 ML6 | LED | 5.10 | 96629839 | ||||||
| IQ SUSP S LED4900-830 HFIX E3 ML6 | LED | 5.10 | 96629842 | ||||||
| IQ SUSP S LED4900-840 HFIX E3 ML6 | LED | 5.10 | 96629841 | ||||||
| IQ SUSP S LED6700-830 HFIX E3 ML6 | LED | 5.10 | 96629845 | ||||||
| IQ SUSP S LED6700-840 HFIX E3 ML6 | LED | 5.10 | 96629844 | ||||||
| IQ SUSP S LED6700-840 HFIX E3TX ML6 | LED | 5.10 | 96629299 |
▼ IQ Wave Suspended, dimmable, through wiring
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-840 HFIX TW6 | LED | 5.20 | 92901541 | ||||||
| IQ SUSP S LED4250-840 HFIX TW6 | LED | 4.70 | 92901672 | ||||||
| IQ SUSP S LED4900-830 HFIX TW6 | LED | 4.30 | 92903966 |
▼ IQ Wave Suspended, Contus
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-840 HF CONT WH | LED | 4.12 | 96637140 | ||||||
| IQ SUSP S LED4250-840 HF CONT WH | LED | 4.12 | 96637141 | ||||||
| IQ SUSP S LED4900-840 HF CONT WH | LED | 4.12 | 96637142 | ||||||
| IQ SUSP S LED6700-840 HF CONT WH | LED | 4.12 | 96637143 |
▼ IQ Wave Suspended, basicDIM, emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED6700-840 BC E3 ML4 | LED | 5.00 | 92902253 |
▼ IQ Wave Suspended
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-830 HF ML3 | LED | 4.30 | 96629276 | ||||||
| IQ SUSP S LED2600-840 HF ML3 WH | LED | 4.30 | 96629277 | ||||||
| IQ SUSP S LED4250-830 HF ML3 | LED | 4.30 | 96629278 | ||||||
| IQ SUSP S LED4250-840 HF ML3 WH | LED | 4.30 | 96629279 | ||||||
| IQ SUSP S LED4900-830 HF ML3 | LED | 4.30 | 96629280 | ||||||
| IQ SUSP S LED4900-840 HF ML3 WH | LED | 4.30 | 96629281 | ||||||
| IQ SUSP S LED6700-830 HF ML3 | LED | 4.30 | 96629282 | ||||||
| IQ SUSP S LED6700-840 HF ML3 WH | LED | 4.30 | 96629283 |
▼ IQ Wave Suspended (variants)
| Description | Catalogue No. | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-830 HF HU ML3 | E7016834 | LED | 4.40 | 96629297 | ||||||
| IQ SUSP S LED4900-840 HF HU SWD ML3 WH | LED | 0.00 | 92906000 |
▼ IQ Wave Suspended, emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-840 HF E3 ML4 | LED | 4.30 | 92901779 | ||||||
| IQ SUSP S LED2600-840 HF E3TX TW6 | LED | 5.20 | 92904117 | ||||||
| IQ SUSP S LED4250-840 HF E3 ML4 | LED | 4.90 | 92901533 | ||||||
| IQ SUSP S LED4900-840 HF E3 ML4 | LED | 6.50 | 92903056 | ||||||
| IQ SUSP S LED4900-840 HF E3TX TW6 WH | LED | 4.50 | 92911541 | ||||||
| IQ SUSP S LED6700-840 HF E3 ML4 | LED | 4.15 | 92901741 | ||||||
| IQ SUSP S LED6700-840 HF E3TX TW6 | LED | 8.50 | 92904594 |
▼ IQ Wave Suspended, sensor
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED6700-830 HFSX ML5 | LED | 4.50 | 96629307 |
▼ IQ Wave Suspended, through wiring
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-840 HF TW6 | LED | 5.20 | 92901666 |
▼ IQ Wave Accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| basicDIM ILD G2 PROGRAMMER | 0.04 | 28003484 | |||||||
| IQ SURF ASYM BRA MWA | 0.05 | 96630389 | |||||||
| IQ SURF connection kit emergency WH | 0.60 | 96630058 | |||||||
| IQ SURF connection kit sensor WH | 0.60 | 96629287 | |||||||
| IQ SURF connection kit standard WH | 0.50 | 96629286 | |||||||
| IQ SUSP CEILING ROSE | 1.50 | 96630258 | |||||||
| IQ SUSP connection kit emergency WH | 0.60 | 96630057 | |||||||
| IQ SUSP connection kit sensor WH | 0.70 | 96629285 | |||||||
| IQ SUSP connection kit standard WH | 0.60 | 96629284 | |||||||
| REMOTECONTROL IR6 | 0.02 | 28000647 |
▼ IQ Wave, Infill panels
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE INFILL 1131 WH | 3.80 | 96629775 | |||||||
| IQ WAVE INFILL 1431 WH | 4.70 | 96629776 | |||||||
| IQ WAVE INFILL 385 WH | 1.40 | 96629772 | |||||||
| IQ WAVE INFILL 565 WH | 2.00 | 96629773 | |||||||
| IQ WAVE INFILL 954 WH | 3.20 | 96629774 |
