  • Punch — <PUNCH 3 ASYM MSP 2200-830 L12 HFIX

Punch / <PUNCH 3 ASYM MSP 2200-830 L12 HFIX

96630508 / E7018929

▼ Data Sheet

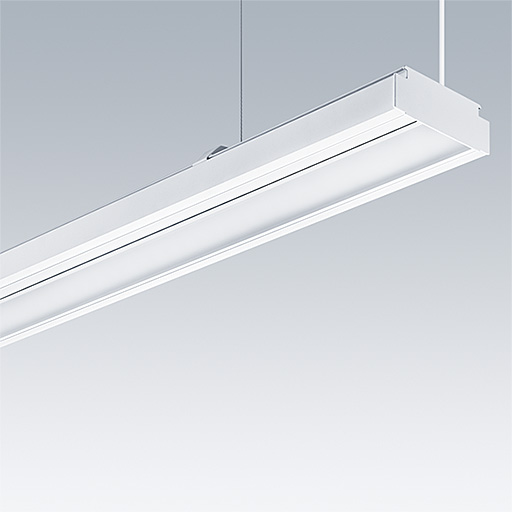

A slim, suspended luminaire with asymmetrical distribution. DALI dimmable LED driver. Body: sheet steel, powder coated white (close to RAL9016). Endcaps: sheet steel powder coated white (close to RAL9016). Louvre: glossy aluminium, double parabolic. Class I electrical, IP20, Impact strength: IK03. Electrical connection via pre-installed power cord (2.5m). Complete with 3000K LED. Suspension kit to be ordered separately.

Y-Suspension connector included - Suspension cord with ceiling rose to be ordered separately (22171581).

Dimensions: 1180 x 116 x 44 mm
Luminaire input power: 16 W
Luminaire luminous flux: 2050 lm
Luminaire efficacy: 128 lm/W
Weight: 3.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2050 lm
  • Luminaire efficacy*:128 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV Tridonic
  • Luminaire input power*:16 W Power factor = 0.95
  • Standby Power*:0.4 W
  • Dimming:DaliDim dimmable to 10%
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • GLedReP
  • 650°
  • IK03
  • IP20
  • LLedReP
  • Electrical class I
  • Ta = 0 to +25
  • UKCA

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
