  • Punch — PUNCH 3 LRO MSP 6600-840 L15 HFIX

Punch / PUNCH 3 LRO MSP 6600-840 L15 HFIX

96635384 / E7021429

▼ Data Sheet

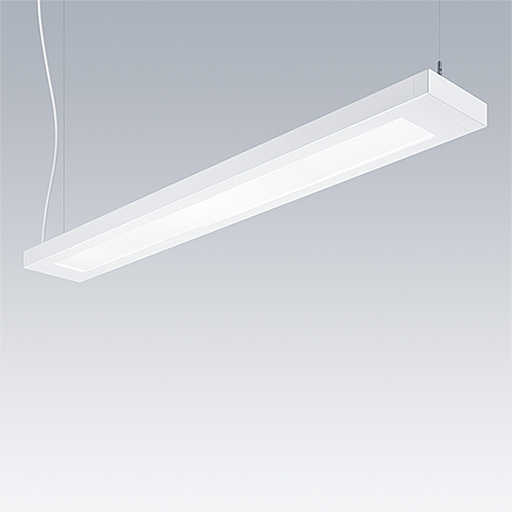

A slim, suspended luminaire with direct/indirect distribution. DALI dimmable Electronic,. Body: sheet steel, powder coated white (close to RAL9016). Endcaps: sheet steel powder coated white (close to RAL9016). Light guided via backlit multilayer PMMA LRO luminance reducing optic with UGR <19, closed optical system to prevent damage from electrostatic discharge, ideal for schools and offices. Class I electrical, IP20, Impact strength: IK03. Electrical connection via pre-installed power cord (2.5m). Complete with 4000K LED.

Y-Suspension connector included - Suspension cord with ceiling rose to be ordered separately (22171581).

Dimensions: 1542 x 162 x 50 mm
Luminaire input power: 54.1 W
Luminaire luminous flux: 6939 lm
Luminaire efficacy: 128 lm/W
Weight: 6.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:6939 lm
  • Luminaire efficacy*:128 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 70000 h at 25 °C
  • Ballast:1x HFI*
  • Luminaire input power*:54.1 W
  • Dimming:DaliDim
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • GLedReP
  • 650°
  • IK03
  • IP20
  • LLedReP
  • Electrical class I
  • Ta = 0 to +25
