  • Novaline Style — NOVS M 2500-840 DI HFI WH

Novaline Style / NOVS M 2500-840 DI HFI WH

96635519 / E7509104

▼ Data Sheet

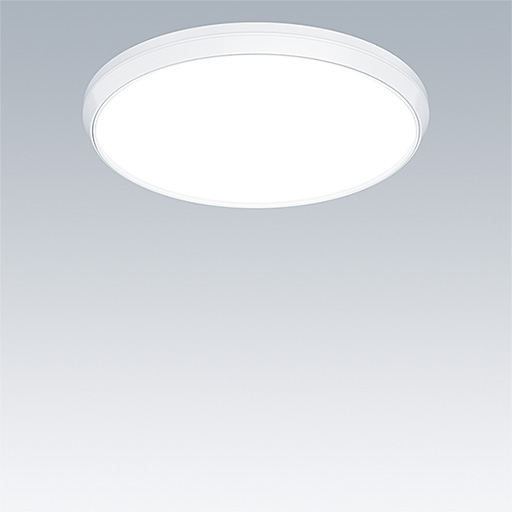

Decorative circular luminaire with medium body. Low indirect component for wall and ceiling illumination. Electronic, DALI dimmable. Aesthetic trim of the luminaire made of polycarbonate in white. Diffuser: opal polycarbonate. Class II electrical, IP54. Complete with 4000K LED.

Dimensions: Ø397 x 69 mm
Luminaire input power: 17.6 W
Luminaire luminous flux: 2500 lm
Luminaire efficacy: 142 lm/W
Weight: 2.14 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2500 lm
  • Luminaire efficacy*:142 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000664 LCA 17W 250-700mA one4all C PRE
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:17.6 W Power factor = 0.96
  • Dimming:DaliDim dimmable to 1%
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • Total harmonic distortion (THD):8.00 %
  • LED
  • CE
  • D
  • ENEC11
  • GLedReP
  • 850°
  • Halogenfree
  • IK08
  • IP54
  • LLedReP
  • RG1
  • RoHs
  • SC2 - Protection Class 2
  • Ta= -15 to +25
  • UKCA
