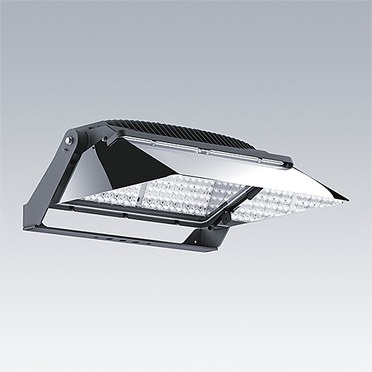

Champion

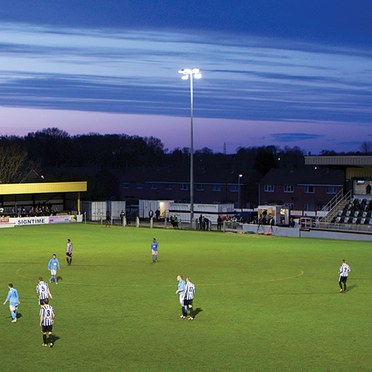

High power LED floodlight with best in class optic for control of obstrusive light for sports and area lighting applications

• Compact asymmetric floodlight, incorporating the flat glass concept and integrated visor for total control of glare and obstrusive light (0 cd at 90°)
• Maximum optical efficiency and flexibility with minimum light spill. 3 accurate light distributions with 4 different visor finishes for Lambertian or specular reflectance.
• The anthracite painted visor is also available in a Back Spill Control version, reducing even more the light spill. A version without visor is also available.
• BEST-IN-CLASS LIGHT QUALITY to provide top-quality illumination for sports and area lighting.
• Superior performance thanks to a compact driver installed in every condition (back of the luminaire up to 200 m remotely), providing the highest performance for all installations.
• Fully controllable solution via DALI or RDMDMX enabling instant lighting, stepped illumination levels down to 25% minimum, and event lighting with dynamic lighting scenarios

Materials and Finish

Body: die-cast aluminium (EN AC-44300) painted anthracite (close to RAL 7043). Standard corrosion class C5 according to ISO 9223:2012.
Visor: stainless steel finish or stainless steel painted anthracite (close to RAL 7043)
Stirrup: galvanised steel painted anthracite (close to RAL 7043)
Glass: 4mm toughened
Screws: stainless steel
