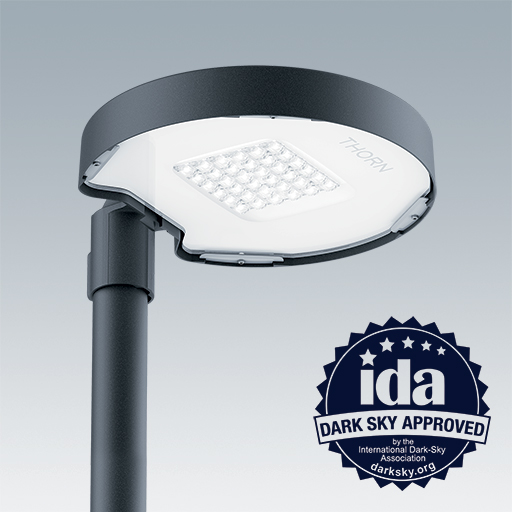

Carat
Elegant urban lantern with durable performance
- IDA Dark Sky Approved
- *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures, +/- 10° maximum tilt only. Luminaires must be mounted as photometered.
- Future proof with Zhaga interface Up, Down, Up and Down, Nighttune and variable light technologies
- Mostly recyclable and environmental respectful with its ULOR of 0%, R-PEC optics with warm colour temperatures (2200 K / 2400 K /2700 K / 3000 K), internal louvre
- Durable with high quality materials made of C5 corrosion class die-cast aluminium as standard
- Flexibility of use : 2 size, top, lateral or suspended mountings, tiltings, dimming and new smart lighting functions to suit any urban application
- Light weight for ease of use, maintainable
Materials and Finish
Housing, spigot: die-cast aluminium (EN AC 44300), powder coated texturized anthracite grey. Via the configurator: Spigot not painted (ANT-S), Texturized black (BK), Texturized light grey (GY) and 48 other RAL possibilities
Standard corrosion class C5 according to ISO 9223: 2012.
Glass: Toughened glass, 4 or 5 mm thickness
Fixings: stainless steel, with anti-galvanic treatment
Installation and Mounting
• Available in 2 sizes and can be installed at various heights.
• Choice of mountings : post-top, lateral, suspended
• Universal spigot for lateral and post top installation with adjustable angles (lateral (-20°/0°) and post top (0°/+15°), 5° steps.
• Choice of diameters to suit multiple masts and brackets (Ø 60mm and Ø 76mm post-top mounting, Ø 42mm and Ø 60mm lateral mounting, 34G male for suspended mounting, 2 versions MSU and MSUL).
• Light weight for ease of manipulation
• Pre-wired depending on version - (Any configuration, available in MyProduct Configurator).
• Recommended height for the small luminaire is 3 to 6m,
• Recommended height for the large luminaire is 6 to 10m.
• Additional features available for comfort and wellbeing in urban and residential streets and roads, parkings, transportation, city centres, pedestrian and cycle paths, parks and promenades
▼ Carat Small, Narrow road optic
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CT S 12L105-730 NR CL2 T60F ANT | 41 | 5267 | LED | 6.60 | 96634284 | ||||
| CT S 12L25-730 NR CL2 T60F ANT | 10 | 1485 | LED | 6.50 | 96634280 | ||||
| CT S 12L35-730 NR CL2 T60F ANT | 14 | 2015 | LED | 6.50 | 96634281 | ||||
| CT S 12L50-730 NR CL2 T60F ANT | 19 | 2780 | LED | 6.60 | 96634282 | ||||
| CT S 12L70-730 NR CL2 T60F ANT | 27 | 3743 | LED | 6.60 | 96634283 | ||||
| CT S 24L105-730 NR CL2 T60F ANT | 79 | 10431 | LED | 7.00 | 96634289 | ||||
| CT S 24L25-730 NR CL2 T60F ANT | 21 | 2968 | LED | 6.60 | 96634285 | ||||
| CT S 24L35-730 NR CL2 T60F ANT | 26 | 4026 | LED | 6.60 | 96634286 | ||||
| CT S 24L50-730 NR CL2 T60F ANT | 36 | 5546 | LED | 6.60 | 96634287 | ||||
| CT S 24L70-730 NR CL2 T60F ANT | 52 | 7448 | LED | 6.70 | 96634288 | ||||
| CT S 36L25-730 NR CL2 T60F ANT | 28 | 4438 | LED | 6.70 | 96634290 | ||||
| CT S 36L35-730 NR CL2 T60F ANT | 38 | 6010 | LED | 6.70 | 96634291 | ||||
| CT S 36L50-730 NR CL2 T60F ANT | 54 | 8251 | LED | 6.70 | 96634292 | ||||
| CT S 36L70-730 NR CL2 T60F ANT | 75 | 11026 | LED | 7.00 | 96634293 | ||||
| CT S 36L80-730 NR CL2 T60F ANT | 86 | 12260 | LED | 7.20 | 96634294 |
▼ Carat Large, Narrow road optic
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CT L 36L105-730 NR CL2 T60F ANT | 116 | 15570 | LED | 9.30 | 96634300 | ||||
| CT L 36L25-730 NR CL2 T60F ANT | 28 | 4449 | LED | 8.80 | 96634295 | ||||
| CT L 36L35-730 NR CL2 T60F ANT | 39 | 6031 | LED | 8.80 | 96634296 | ||||
| CT L 36L50-730 NR CL2 T60F ANT | 55 | 8307 | LED | 8.80 | 96634297 | ||||
| CT L 36L70-730 NR CL2 T60F ANT | 76 | 11152 | LED | 9.10 | 96634298 | ||||
| CT L 48L25-730 NR CL2 T60F ANT | 36 | 5929 | LED | 9.10 | 96634301 | ||||
| CT L 48L35-730 NR CL2 T60F ANT | 50 | 8031 | LED | 9.10 | 96634302 | ||||
| CT L 48L50-730 NR CL2 T60F ANT | 71 | 11049 | LED | 9.40 | 96634303 | ||||
| CT L 48L70-730 NR CL2 T60F ANT | 101 | 14797 | LED | 9.40 | 96634304 | ||||
| CT L 48L80-730 NR CL2 T60F ANT | 116 | 16567 | LED | 9.60 | 96634305 | ||||
| CT L 60L25-730 NR CL2 T60F ANT | 46 | 7397 | LED | 9.40 | 96634306 | ||||
| CT L 60L35-730 NR CL2 T60F ANT | 62 | 10009 | LED | 9.40 | 96634307 | ||||
| CT L 60L50-730 NR CL2 T60F ANT | 89 | 13739 | LED | 9.40 | 96634308 | ||||
| CT L 60L70-730 NR CL2 T60F ANT | 126 | 18334 | LED | 9.40 | 96634309 | ||||
| CT L 60L80-730 NR CL2 T60F ANT | 147 | 20461 | LED | 9.60 | 96634310 |
