CiviTEQ / CQ 36L35 740 EWR BS 3550 CL2 M60 ANT

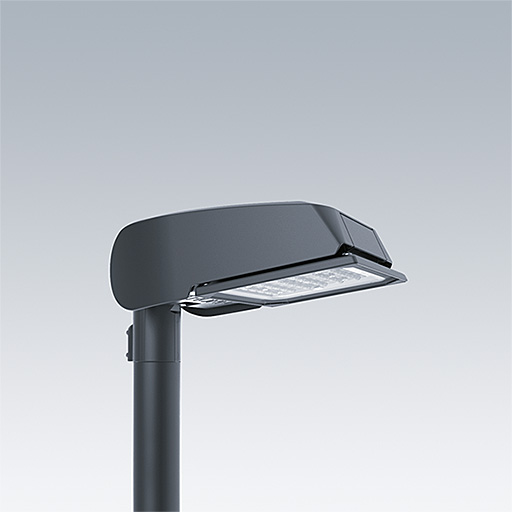

A small size LED road lighting lantern with 36 LEDs driven at 350mA with Extra Wide Road optic. Electronic, fixed output control gear. Class II electrical, IP66, IK08. Housing: die-cast aluminium (EN AC-44300), powder coated anthracite (close to RAL7043). Enclosure: toughened flat glass. White framed with etched border. Screws: stainless steel, Ecolubric® treated. Supplied with Ø60mm spigot adaptor which can be fitted for post-top (0°/5°/10° tilt) or side-entry (-20°/-15°/-10°/-5°/0° tilt). Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Complete with 4000K LED. Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.

Dimensions: 390 x 230 x 133 mm
Luminaire input power: 39 W
Luminaire luminous flux: 6164 lm
Luminaire efficacy: 158 lm/W
Weight: 5.7 kg
Scx: m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:6164 lm
• Luminaire efficacy*:158 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 28003162 LCO 90/200-1050/165 o4a NFC C EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated useful life (B10)*:L90 100000 h at 25 °C
• Luminaire input power*:39 W Power factor = 0.9
• Dimming:FO
