Flow / FW 12L70-740 NR CL2 T60F ANT

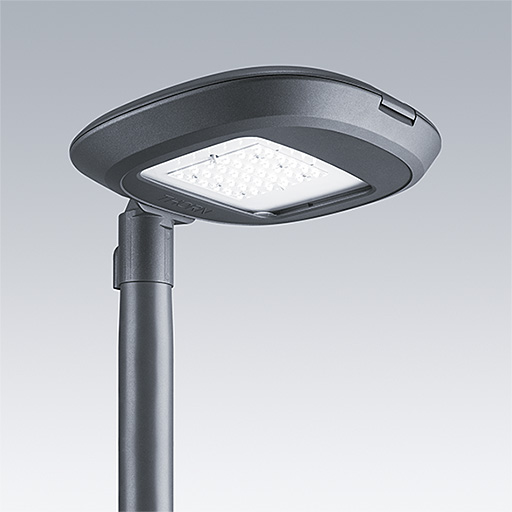

A highly versatile LED lantern with a Narrow Road, asymmetric distribution. Electronic, fixed output control gear driving 12 LEDs at 700mA. Compatible with PL, LRT, 7 pin Nema socket. Class II electrical, IP66, IK10. Housing, canopy and spigot: die-cast aluminium (EN AC-47100) powder coated anthracite (close to RAL7043).. Enclosure: 6mm thick clear glass.. Complete with 4000K LED. Post top mounting to Ø60mm column, tilt 5°, adjustable from 0° to +10°.

Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.

Dimensions: 435 x 436 x 200 mm
Luminaire input power: 26.6 W
Luminaire luminous flux: 3754 lm
Luminaire efficacy: 141 lm/W
Weight: 8 kg
Scx: 0.054 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:3754 lm
• Luminaire efficacy*:141 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated useful life (B10)*:L95 100000 h at 25 °C
• Luminaire input power*:26.6 W
• Dimming:Fixed output
