Isaro / IS S 36L70-730 NR M CLO BP3550 ZU CL2 ->

92945459

Data Sheet

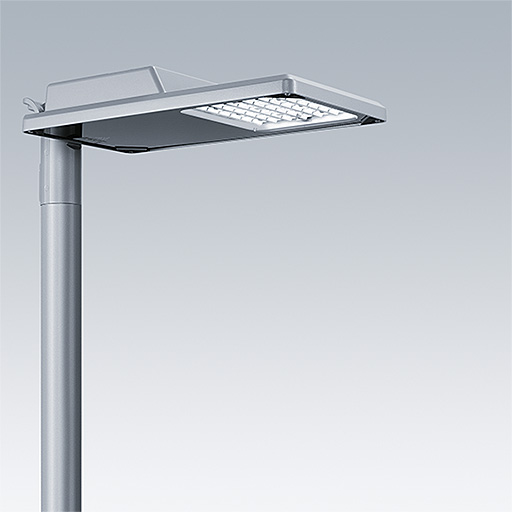

A discrete and flexible road and street lantern with durable high performance. Programmable LED driver, set for constant light output, driving 36 LEDs at 700mA. Body: small size, die-cast aluminium (EN AC-44300), powder coated textured light grey 150 (close to RAL9006). Shaft: light grey 150 (close to RAL9006). Cover: Extra White glass. Fixings: stainless steel with anti-galvanic treatment. Narrow Road optic, with Colour Rendering Index min.: 70, Correlated colour temperature*: 3000 Kelvin LEDs supplied. Class II electrical, Impact strength: IK08, IP66, Ta max.: 45°C. Supplied with Ø60mm spigot adaptor pre-fitted for post-top, 5° tilt. Pre-wired with 10m, 1.5mm² H07RN-F cable. Fitted with LED optic lining. BPxyzz: Autonomous bi-power reduction (x: hours before midnight, y: hours after midnight, zz: reduction (%)) equipped with Zhaga socket up.

Dimensions: 550 x 238 x 157 mm
Luminaire input power: 75.5 W
Luminaire luminous flux: 11537 lm
Luminaire efficacy: 153 lm/W
Weight: 5.09 kg
Scx: 0.041 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:11537 lm
  • Luminaire efficacy*:153 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500832 LCO 90/200-1050/165 pD+ NF C PRE3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:75.5 W Power factor = 0.97
  • Dimming:PROG
  • LED
  • CE
  • ENEC11 +
  • ENEC11
  • GLedReP
  • 650°
  • IK08
  • IP66
  • Coastal_C5
  • LLedNr
  • SC2 - Protection Class 2
  • Ta= -35 to +45
