Oxane

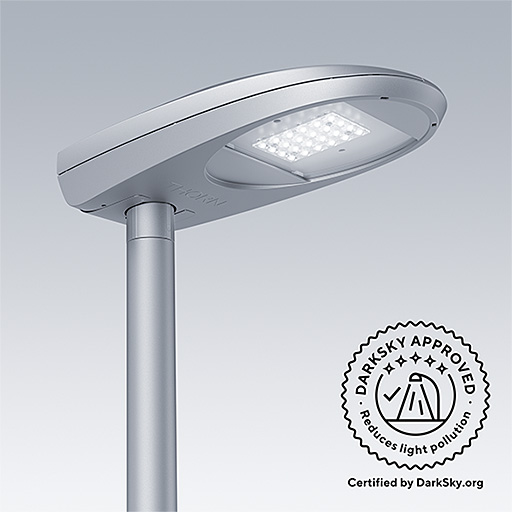

OXANE classic, yet modern design road lighting lantern for urban and street applications
- Aesthetic road and urban lantern with high performance and smart city ready for direct efficient replacement of HID lanterns
- Toolless opening system with holder for very convenient maintenance and upgrade operations
- Extremely durable and robust with high quality materials (body and cover 100% made of recycled aluminum) for even coastal or subtropical installation. Highest corrosion protection (C5 from ISO 9223)
- Smart City ready: future-proof thanks to two optional Zhaga interfaces for state-of-the-art light control, wireless networking and diverse sensors. ZD4i certified and URBASENS ready
- Create your full assembly with dedicated aesthetic pole brackets. Totally configurable via myProduct
Materials and Finish
Body and cover, spigot: die-cast aluminium EN AC 44300 with <0,1% copper content, powder coated texturized light grey (GY).
Glass : tempered glass (4mm) offering >90% light transmission.
External screws : stainless steel, with zink flake Geomet® treatment to avoid galvanic corrosion.
Available via myProduct configurator: texturized anthracite (ANT), black (BK) and 48 other RAL possibilities
Installation and Mounting
Installation up to 12m height. Universal spigot for lateral and post top installation. Versatile tilting technology, lateral (-15°/0°) and for post top (0°/+20°). Adjustable inclination by increments of 5° to optimize lighting distribution and uniformity. Compliant with coastal or subtropical installation.
- New Product
▼ Oxane
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| OX2 12L35-730 NR CL2 L60E GY-S | 13 | 2007 | LED | 7.84 | 96684205 | |||||
| OX2 12L50-730 NR CL2 L60E GY-S | 19 | 2766 | E7729320 | LED | 7.84 | 96684206 | ||||
| OX2 12L70-730 NR CL2 L60E GY-S | 27 | 3714 | E7729321 | LED | 7.84 | 96684207 | ||||
| OX2 24L35-730 NR CL2 L60E GY-S | 27 | 4005 | E7729322 | LED | 7.90 | 96684208 | ||||
| OX2 24L50-730 NR CL2 L60E GY-S | 38 | 5509 | E7729323 | LED | 7.90 | 96684209 | ||||
| OX2 24L70-730 NR CL2 L60E GY-S | 52 | 7366 | E7729324 | LED | 7.93 | 96684210 | ||||
| OX2 36L35-730 NR CL2 L60E GY-S | 39 | 5983 | LED | 7.98 | 96684211 | |||||
| OX2 36L50-730 NR CL2 L60E GY-S | 54 | 8201 | LED | 7.98 | 96684212 | |||||
| OX2 36L70-730 NR CL2 L60E GY-S | 76 | 10908 | LED | 8.27 | 96684213 | |||||
| OX2 36L85-730 NR CL2 L60E GY-S | 93 | 12748 | LED | 8.39 | 96684214 |
