  • Thor — TR 12L25-740 NR CL2 FD T60E ANT

Thor / TR 12L25-740 NR CL2 FD T60E ANT

96635448

▼ Data Sheet

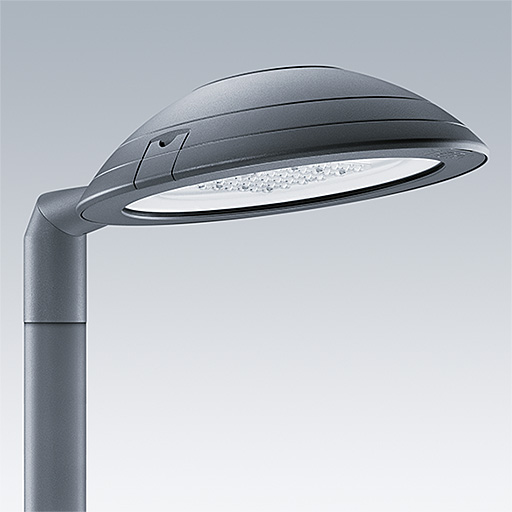

A small size, smart urban LED lantern with 12 LEDs driven at 250mA with narrow road optic and die-cast aluminium EN AC 47100 + CAT dome with anthracite finish (close to RAL7043). Class II electrical, IP66, IK10. Body: die-cast aluminium (EN AC 47100 + CAT) treated against corrosion, powder coated anthracite (close to RAL7043), bracket: die-cast aluminium (EN AC-47100 + CAT) treated against corrosion, powder coated anthracite (close to RAL7043). Enclosure: 6mm toughened flat glass. Screws and closing set: stainless steel. Post top mounting to Ø60mm column, tilt 0°, adjustable from -15° to +10°. Complete with 4000K LED.

Dimensions: 618 x 459 x 251 mm
Luminaire input power: 12 W
Luminaire luminous flux: 1532 lm
Luminaire efficacy: 128 lm/W
Weight: 8.65 kg
Scx: 0.038 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1532 lm
  • Luminaire efficacy*:128 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500875 LCO 14/100-500/38 NF C ADV3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L90 100000 h at 25 °C
  • Luminaire input power*:12 W
  • Dimming:FO
  • LED
  • CE
  • ENEC
  • GLedReP
  • IK10
  • IP66
  • Coastal_C5
  • LLedReP
  • SC2 - Protection Class 2
  • Ta=25
