  • Urba — UA 60L50-740 NR CL2 T60E ANT

Urba / UA 60L50-740 NR CL2 T60E ANT

96671777

▼ Data Sheet

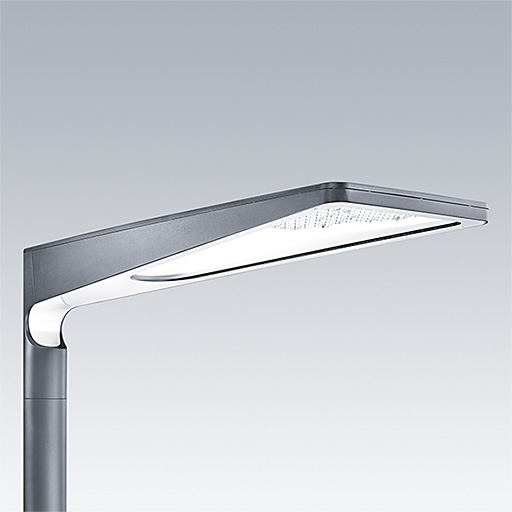

A large size LED urban street lighting lantern with 60 LEDs driven at 500mA with narrow road optic. Electronic, fixed output control gear. Class II electrical, IP66, Impact strength: IK09. Body: die-cast aluminium (EN AC-44300), textured anthracite. Cover: tempered flat clear glass. Fixings: stainless steel with anti-galvanic treatment. Post top mounting to Ø60mm column. Complete with 4000K LED.

Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.

Dimensions: 1078 x 400 x 357 mm
Luminaire input power: 88.4 W
Weight: 16 kg
Scx: 0.11 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:13985 lm
  • Luminaire efficacy*:158 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 28003163 LCO 135/200-1050/ 220 o4a NF C EXC3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:88.4 W
  • Dimming:FO
  • LED
  • CE
  • ENEC11
  • GLedReP
  • IK09
  • IP66
  • Coastal_C3
  • LLedReP
  • SC2 - Protection Class 2

▼ Photometry

Photometric configuration
