Contrast
Distinctive and elegant, Contrast range emphasises modern architecture and urban environment
- The entire family appears in a consistent and long-lasting modern design. With the monochrome black front face, the design of the Contrast cites the typical attributes of powerful optical instruments.

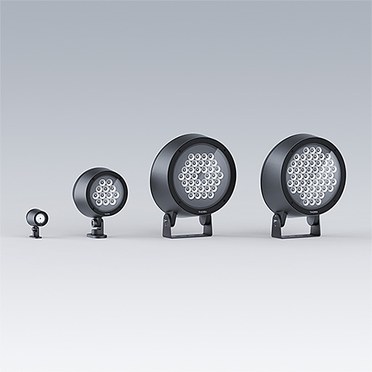

- From compact 4 LED spotlight to powerful 52 LED floodlight, Contrast offers a large choice of colour temperature from very warm 2200K to 4000K, balanced white and RGBW to reach the perfect colour.
- An easy control of the light with DALI2 for whites and RDMX for RGBW. You can also select manual dimming with a discreet push button or bluetooth wireless dimming to manage your installation from your smartphone.

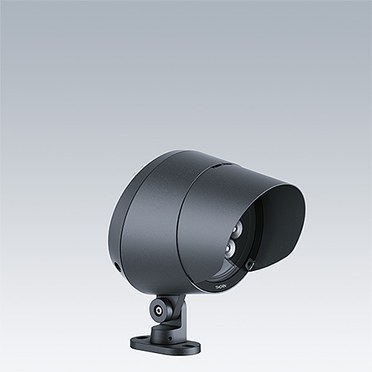

- The 4LED mini Contrast is very compact with an integrated driver (whites only) and a single lens to achieve great colour mixing.
- Contrast is available with narrow to ultra wide beam angles, elliptical and asymmetrical beams. A great choice of nicely designed accessories can be added on site: rotative film diffusers to enlarge the choice of beam angles; honey comb, louvre and visor.
- Installation on pole is simplified with a dedicated pole mounting interface specifically designed for 12 LED Contrast.
Materials and Finish
Body: die-cast aluminium (EN AC-44300) best resistance against corrosion. Compatible with seaside installation. (Standard corrosion class C5 according to ISO 9223: 2012).
Powder coated in texturized anthracite grey / light grey / black / white. Other RAL on request.
Breather .
Glass: tempered glass, 5mm thick.
Gasket: EPDM.
Screws: geomet screws.
Installation and Mounting
4L and 12L Contrast are equiped with a rotative foot for 360° horizontal roation, 36L and 52L Contrast are equipped with a stirrup. Vertical tilting of -70° +80°.
4L Contrast white: with integrated driver prewired with 1x2 metres cable.
Balanced white and RGBW: prewired with 1 or 2x 2metres cable, Gearbox must be ordered separately.
Bluetooth or DALI light management available in remote gearbox to be ordered separately.
2 cables glands with connector for loop in loop out when using a remote box.
No LED module replacement.
12L, 36L and 52L: integrated driver ,2 cable glands for whites, 4 cable glands for RGBW.
Cable glands for Ø8-13mm cable.
No LED module replacement.
Optical accessories to be screwed on the front ring. film diffusers can be rotated for precise beam positioning.

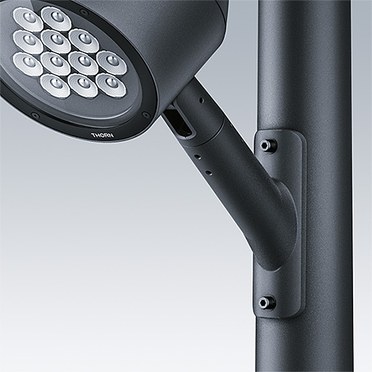

Pole mounting interface for 12L Contrast for pole diameter 60 to 100mm.
▼ Contrast Small
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
CONT3 4L BW CBOX GB HFX SP | 1.29 | 96633488 | |||||||
CONT3 4L RGBW C-BOX GB RDMX SP | 1.30 | 96636991 | |||||||
CONT3 4L WHITE-BU CBOX GB HFX 6K | 1.31 | 96633487 | |||||||
CONT3 4L WHITE-BU CBOX GB HFX SP | 1.31 | 96633486 | |||||||
CONT3 4L50 822-40 UWB NG IO ANT | 7 | 379 | LED | 1.04 | 96633443 | ||||
CONT3 4L50 830 IMB HF ANT | 8 | 409 | LED | 0.92 | 96633456 | ||||
CONT3 4L50 830 MB HF ANT | 8 | 376 | LED | 0.91 | 96633689 | ||||
CONT3 4L50 BU NB NG IO ANT | 9 | 145 | LED | 0.92 | 96635282 | ||||
CONT3 4L50-822 MB HF ANT | 8 | 299 | LED | 0.91 | 96633688 | ||||
CONT3 4L50-822-40 8X32 NG IO ANT | 7 | 400 | LED | 1.04 | 96633442 | ||||
CONT3 4L50-822-40 MB NG IN ANT | 7 | 347 | LED | 0.90 | 96633440 | ||||
CONT3 4L50-822-40 MB NG IO ANT | 7 | 347 | LED | 1.03 | 96633439 | ||||
CONT3 4L50-822-40 NB NG IO ANT | 7 | 409 | LED | 1.03 | 96633438 | ||||
CONT3 4L50-822-40 WB NG IO ANT | 7 | 293 | LED | 1.03 | 96633441 | ||||
CONT3 4L50-827 MB HF ANT | 8 | 357 | LED | 0.91 | 96633682 | ||||
CONT3 4L50-830 NB HF ANT | 8 | 466 | LED | 0.91 | 96633433 | ||||
CONT3 4L50-830 NB NG IN ANT | 8 | 466 | LED | 0.89 | 96633691 | ||||
CONT3 4L50-830 NB NG IO ANT | 8 | 466 | LED | 1.02 | 96633434 | ||||
CONT3 4L50-840 MB HF ANT | 8 | 395 | LED | 0.91 | 96633690 | ||||
CONT3 4L50-RGBW NB NG IO ANT | 8 | 252 | LED | 1.05 | 96637058 |
▼ Contrast Medium
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
CONT3 12L105 722 WB HFX 6K ANT | 41 | 2767 | LED | 5.10 | 92925835 | ||||
CONT3 12L105 830 AS HFX SP ANT | 41 | 3199 | LED | 5.12 | 96633446 | ||||
CONT3 12L105 830 MB SWD 6K ANT | 41 | 3457 | LED | 5.00 | 96633445 | ||||
CONT3 12L105-830 NB HFX 6K ANT | 41 | 3887 | LED | 5.07 | 96633444 | ||||
CONT3 12L105-830 NB HFX SP BK | 41 | 3887 | LED | 5.07 | 96633669 | ||||
CONT3 12L70-RGBW NB RDMX SP ANT | 32 | 1641 | LED | 5.09 | 96633447 |
