  • Contrast — CONT3 52L105-830 NB HFX 6K ANT

Contrast / CONT3 52L105-830 NB HFX 6K ANT

96633457

▶Change configuration

  • Base: 96633457 — CONT3 52L105-830 NB HFX 6K ANT

▼ Data Sheet

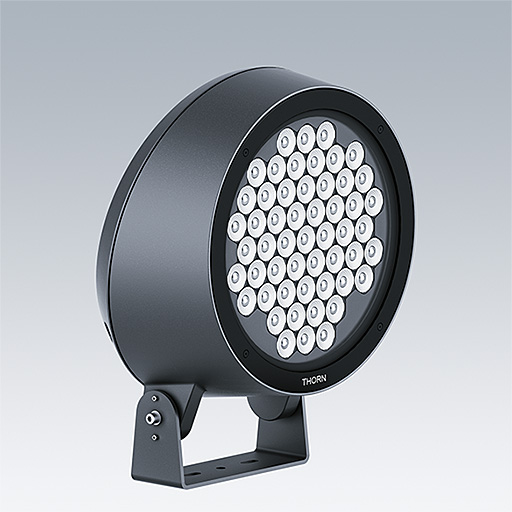

A large architectural Bracket mounted LED floodlight with 52 LEDs driven at 1050mA and a narrow beam distribution. LED driver, DALI-2 dimmable. Class II electrical, IP66, IK08. Body: die-cast, powder coated, textured anthracite (close to RAL7043). Compatible with coastal environments. Glass: tempered, 5mm thick. Gasket: EPDM. Screws: geomet. Equipped with 6kV surge protection device. Complete with 3000K LED

,

Dimensions: Ø397 x 206 mm
Luminaire input power: 166 W
Luminaire luminous flux: 16873 lm
Luminaire efficacy: 102 lm/W
Weight: 13.21 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:16873 lm
  • Luminaire efficacy*:102 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28003164 LCO 200/200-1050/355 o4a NF C EXC3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:166 W Power factor = 0.97
  • Dimming:Dali2Dim
  • LED
  • CE
  • ENEC11
  • GLedReP
  • IK08
  • IP66
  • Coastal_C5
  • LLedReP
  • SC2 - Protection Class 2
  • Ta= -20 to +25
