Raze Architectural

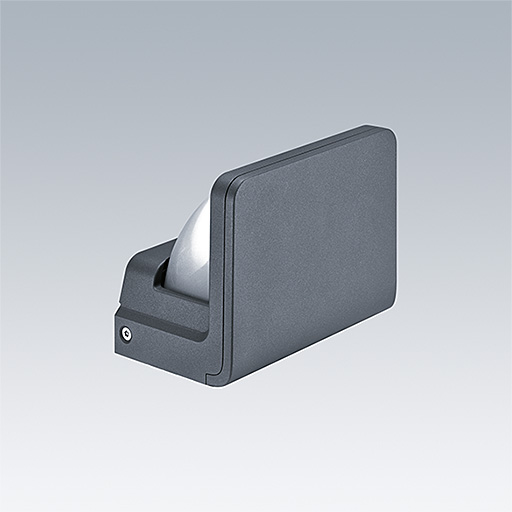

RAZE Architectural is the perfect tool for achieving a dramatic grazing effect on façades
- Raze's integrated Flat beam® patented optic technology can reveal the texture and character of surfaces from a single installation point
- A compact luminaire in 2 sizes with an extensive beam and high utilisation factor for a minimum loss of flux as most of the light emitted is projected on the surface
- Whether vertically or horizontally used, upwards or downwards, Raze can be placed very close to the wall still reaching high uniformity
- Raze Architectural is equipped with DALI. Internal louvre available in large size to reduce lateral glare
Materials and Finish
Housing: die-cast aluminium (EN AC-44300) best resistance against corrosion. Compatible with seaside installation.
Standard corrosion class C5 according to ISO 9223: 2012.
Powder coated in texturized anthracite grey / light grey / black. Other RAL on request
Bowl: UV stabilised PC, Large: partially frosted, Small: fully frosted
Fasteners: stainless steel
Surge protection: 6kV
Installation and Mounting
Small and large Raze Architectural can be mounted flush on the wall (MWA) or on the ground or ceiling with a tilting bracket (MSF). Raze Architectural small with remote Dali driver whether IP20(HFX/R) or in gear box IP65 (HFX/RB). Raze Architectural small can be ordered with no driver (NG) as one driver can drive up to 3 luminaires. Raze Architectural Large with integrated Dali driver.
▼ Raze Architectural Small
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| RAA S 1L35-827 HFX/RB 6K MSF ANT | 6 | 350 | LED | 1.28 | 96631797 | ||||
| RAA S 1L35-830 HFX/R 6K MSF ANT | 6 | 350 | LED | 0.84 | 96632096 | ||||
| RAA S 1L35-830 HFX/R 6K MWA ANT | 6 | 350 | LED | 0.79 | 96632095 | ||||
| RAA S 1L35-830 HFX/RB 6K MSF ANT | 6 | 350 | LED | 1.28 | 96631791 | ||||
| RAA S 1L35-830 HFX/RB 6K MWA ANT | 6 | 350 | LED | 1.23 | 96631790 | ||||
| RAA S 1L35-830 NG 6K MSF ANT | 6 | 350 | LED | 0.61 | 96631720 | ||||
| RAA S 1L35-830 NG 6K MWA ANT | 6 | 350 | LED | 0.56 | 96632094 |
▼ Raze Architectural Large
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| RAA L 1L50-827 HFX 6K MSF ANT | 21 | 1371 | LED | 2.85 | 96632097 | ||||
| RAA L 1L50-830 HFX 6K MSF ANT | 21 | 1688 | LED | 2.85 | 96631721 | ||||
| RAA L 1L50-830 HFX 6K MWA ANT | 21 | 1688 | LED | 2.77 | 96632100 | ||||
| RAA L 1L50-830 LV HFX 6K MSF ANT | 21 | 1433 | LED | 2.85 | 96632098 | ||||
| RAA L 1L50-830 LV HFX 6K MWA ANT | 21 | 1433 | LED | 2.77 | 96631792 |
