GTLED Pro gears aluminium
Light that lasts - for any tunnel
- Designed for long lasting performance suitable with the highest corrosion classification (C5) and no debris retention design
- Light in weight, easy to handle, flexible in fixation - the gear box can be installed up to 200m away from the luminaire to offer safe installation and maintenance
- One single gear box can feed up to 20 luminaires for optimization of the material installed and reduction of the structure constraints
- Dimming on the control gear possible via DALI or Pilot Line
- Pre-wired with connector for a fast error free plug to the luminaire
Materials and Finish
Body: die cast aluminium ENAC 44200
Brackets: steel 316L
Finish: powder painted texturised light grey
Installation and Mounting
Fixation onto the structure (e.g. ladder) via 2 brackets (supplied) by the means of screws (not supplied)
Power in cabling via one dedicated cable gland - power out (through wiring) via another dedicated cable gland
DALI in cabling via one dedicated cable gland - DALI out via another dedicated cable gland
Ready to plug to the luminaire with the pre-wired and fitted corresponding connector
New Product
LumExpress Product
eControl Product

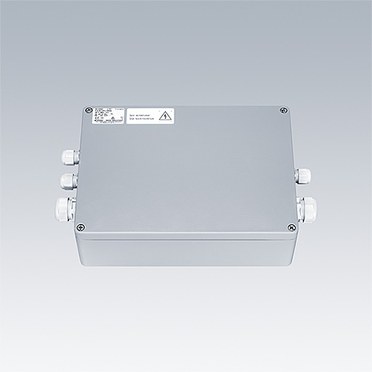

▼ GTLED Pro, gear box, aluminium
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
GP AB 1X200 DA LV-OUT1 100 W1,5 CL1 | 6.89 | 96670359 | |||||||
GP AB 1X200 DA LV-OUT1 105 W1,5 CL1 | 6.89 | 96670348 | |||||||
GP AB 1X200 DA LV-OUT1 50 W1,5 CL1 | 6.89 | 96670349 | |||||||
GP AB 1X200 DA LV-OUT1 70 W1,5 CL1 | 6.89 | 96670350 | |||||||
GP AB 1X200 DA LV-OUT1 85 W1,5 CL1 | 6.89 | 96670360 | |||||||
GP AB 2X135 DA HV-OUT1 50 W1,5 CL1 | 7.74 | 96670352 | |||||||
GP AB 2X135 DA HV-OUT1 70 W1,5 CL1 | 7.74 | 96670353 | |||||||
GP AB 2X135 DA LV-OUT1 105 W1,5 CL1 | 7.74 | 96670351 | |||||||
GP AB 2X135 DA LV-OUT2 100 W1,5 CL1 | 7.94 | 96670361 | |||||||
GP AB 2X200 DA HV-OUT1 50 W1,5 CL1 | 8.19 | 96670354 | |||||||
GP AB 2X200 DA HV-OUT1 70 W1,5 CL1 | 8.19 | 96670355 | |||||||
GP AB 2X200 DA LV-OUT1 85 W1,5 CL1 | 8.19 | 96670363 | |||||||
GP AB 2X200 DA LV-OUT2 100 W1,5 CL1 | 8.39 | 96670362 | |||||||
GP AB 2X200 DA LV-OUT2 105 W1,5 CL1 | 8.39 | 96670356 | |||||||
GP AB 3X200 DA HV-OUT1 70 W1,5 CL1 | 9.58 | 96670364 | |||||||
GP AB 3X200 DA HV-OUT1 85 W1,5 CL1 | 9.58 | 96670357 | |||||||
GP AB 4x135 DA HV-OUT2 50 W1,5 CL1 | 10.10 | 96670366 | |||||||
GP AB 4X135 DA HV-OUT2 70 W1,5 CL1 | 10.10 | 96670358 | |||||||
GP AB 4x135 DA LV-OUT2 105 W1,5 CL1 | 10.10 | 96670365 | |||||||
GP AB 4x200 DA HV-OUT2 70 W1,5 CL1 | 11.00 | 96670367 |
