GTLED Pro gears polyester
Light that lasts - for any tunnel
- Designed for long lasting performance suitable with the highest corrosion classification (C5) and no debris retention design
- Light in weight, easy to handle, flexible in fixation - the gear box can be installed up to 200m away from the luminaire to offer safe installation and maintenance
- One single gear box can feed up to 20 luminaires for optimization of the material installed and reduction of the structure constraints
- Dimming on the control gear possible via DALI or Pilot Line
- Pre-wired with connector for a fast error free plug to the luminaire
- Through wiring ready for loop-in loop-out between gear boxes without the need for additional junction box
Materials and Finish
Body: polyester glass reinforced (25%)
Brackets: steel 316L
Finish: unpainted polyester light grey
Installation and Mounting
Fixation onto the structure (e.g. ladder) via 2 brackets (supplied) by the means of screws (not supplied)
Power in cabling via one dedicated cable gland - power out (through wiring) via another dedicated cable gland
DALI in cabling via one dedicated cable gland - DALI out via another dedicated cable gland
Ready to plug to the luminaire with the pre-wired and fitted corresponding connector
New Product
LumExpress Product
eControl Product

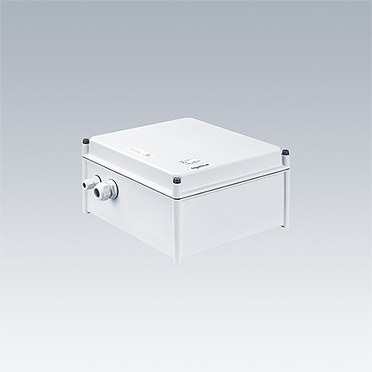

▼ GTLED Pro, gear box, plastic
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
GP PB 1X200 DA LV-OUT1 100 W1,5 CL1 | 5.71 | 96670003 | |||||||
GP PB 1X200 DA LV-OUT1 105 W1,5 CL1 | 5.71 | 96668849 | |||||||
GP PB 1X200 DA LV-OUT1 50 W1,5 CL1 | 5.71 | 96668852 | |||||||
GP PB 1X200 DA LV-OUT1 70 W1,5 CL1 | 5.71 | 96668854 | |||||||
GP PB 1X200 DA LV-OUT1 85 W1,5 CL1 | 5.71 | 96670004 | |||||||
GP PB 2X135 DA HV-OUT1 50 W1,5 CL1 | 6.70 | 96668859 | |||||||
GP PB 2X135 DA HV-OUT1 70 W1,5 CL1 | 6.70 | 96668861 | |||||||
GP PB 2X135 DA LV-OUT1 105 W1,5 CL1 | 6.70 | 96668856 | |||||||
GP PB 2X135 DA LV-OUT2 100 W1,5 CL1 | 6.84 | 96670005 | |||||||
GP PB 2X200 DA HV-OUT1 50 W1,5 CL1 | 7.15 | 96668871 | |||||||
GP PB 2X200 DA HV-OUT1 70 W1,5 CL1 | 7.15 | 96668873 | |||||||
GP PB 2X200 DA LV-OUT1 85 W1,5 CL1 | 7.15 | 96670008 | |||||||
GP PB 2X200 DA LV-OUT2 100 W1,5 CL1 | 7.29 | 96670007 | |||||||
GP PB 2X200 DA LV-OUT2 105 W1,5 CL1 | 7.29 | 96668875 | |||||||
GP PB 3X200 DA HV-OUT1 70 W1,5 CL1 | 8.61 | 96670010 | |||||||
GP PB 3X200 DA HV-OUT1 85 W1,5 CL1 | 8.61 | 96669921 | |||||||
GP PB 4X135 DA HV-OUT2 50 W1,5 CL1 | 9.23 | 96670013 | |||||||
GP PB 4X135 DA HV-OUT2 70 W1,5 CL1 | 9.23 | 96669922 | |||||||
GP PB 4X135 DA LV-OUT2 105 W1,5 CL1 | 9.23 | 96670012 | |||||||
GP PB 4X200 DA HV-OUT2 70 W1,5 CL1 | 10.13 | 96670017 |
