  • Aerie — ARS 12L50-740 WSC CL CL2 W5 T60 ANT

Aerie / ARS 12L50-740 WSC CL CL2 W5 T60 ANT

96632770

▼ Data Sheet

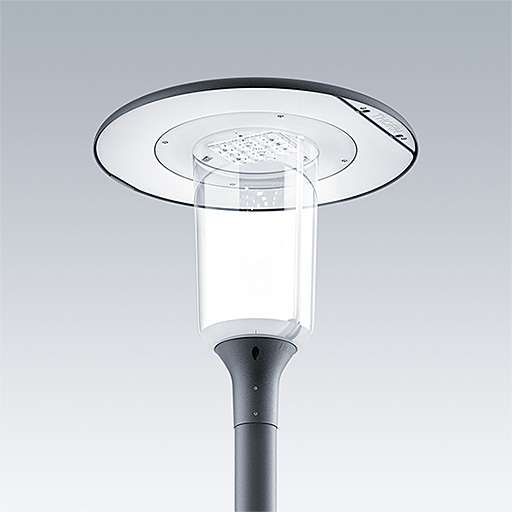

A discreet, post top LED lantern with a timeless design. LED driver for 12 LEDs, driven at 500mA with Wide Street Comfort (asymmetrical) distribution. Class II electrical, IP66, IK10. Canopy and base: corrosion resistant die-cast powder coated aluminium suitable for C5 environments, finished textured anthracite (close to RAL7043). Enclosure: slim UV stabilised polycarbonate with clear finish. Complete with 4000K LED. Post top mounting to Ø60mm column. Pre-wired with 5m cable.

Dimensions: Ø602 x 586 mm
Luminaire input power: 19 W
Luminaire luminous flux: 2829 lm
Luminaire efficacy: 149 lm/W
Weight: 10.99 kg
Scx: 0.172 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2829 lm
  • Luminaire efficacy*:149 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500877 LCO 40/200-1050/64 NF C ADV3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L95 100000 h at 25 °C
    L90 100000 h at 50 °C
  • Luminaire input power*:19 W Power factor = 0.97
  • Dimming:PROG
  • LED
  • CE
  • ENEC11 +
  • ENEC11
  • GLedReP
  • IK10
  • IP66
  • Coastal_C5
  • LLedReP
  • SC2 - Protection Class 2
