  • Avenue F2 — AVF F 18L35-730 RSC CL2 CON T60 BK

Avenue F2 / AVF F 18L35-730 RSC CL2 CON T60 BK

96672110

▼ Data Sheet

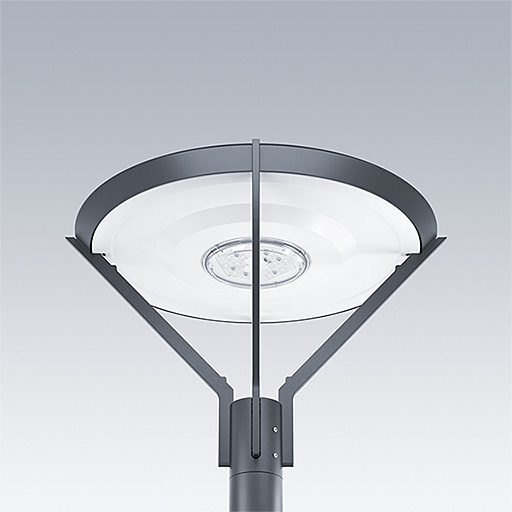

Decorative post-top lantern with 18 LEDs driven at 350mA and a radial symmetrical comfort optic with minimum upward light.. Class II electrical, IP66, IK08. Base and arms: die-cast aluminium (EN AC-46000), Canopy: spun aluminium, texturized black. Diffuser: clear polycarbonate. Screw fixings: stainless steel. Equipped with cable gland. Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode. Complete with 3000K LED

Post top mounting to a Ø60mm column, spigot internal length 100mm.

Dimensions: Ø700/720 x 500 mm
Luminaire input power: 21 W
Weight: 7.55 kg
Scx: 0.11 m²
Luminaire efficacy: 124 lm/W

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2600 lm
  • Luminaire efficacy*:124 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 96277063
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:21 W
  • Dimming:FO
  • LED
  • CE
  • IDA
  • IK08
  • IP66
  • Coastal_C3
  • SC2 - Protection Class 2
  • Ta=25
