EP 445 / EP445 24L70-827 ROTO BPS CL2 W5M MTP

96631753

▼ Data Sheet

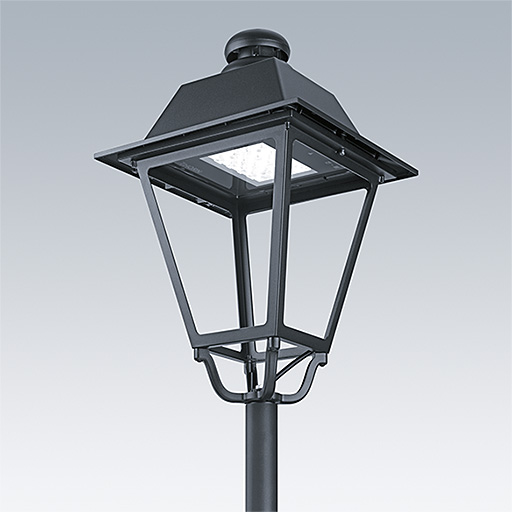

A 19th Century style lantern with 24 LEDs with switchable drive current and symmetrical optic. Post top mounting. Equipped with power reduction circuit, profile selected by rotary switch. Class II electrical, IP66, IK08. Body: die-cast aluminium, painted black (close to RAL9005) textured. Enclosure: 4mm thick extra clear glass. Pre-wired with 5m cable. Complete with 2700K LED

Dimensions: 436 x 436 x 695 mm
Luminaire input power: 53 W
Weight: 9.7 kg
Scx: 0.19 m²

Mode selection
  • Lamp position:700mA
  • Light Source:LED
  • Luminaire luminous flux*:4875 lm
  • Luminaire efficacy*:92 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L80 100000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:53 W
  • Dimming:BP2
  • LED
  • CE
  • ENEC
  • IDA
  • IK08
  • IP66
  • SC2 - Protection Class 2

▼ Photometry

Photometric configuration
