  • EP 445 — EP445 36L70-740 ROTO BPS CL2 W5M MTP

EP 445 / EP445 36L70-740 ROTO BPS CL2 W5M MTP

96631766

▼ Data Sheet

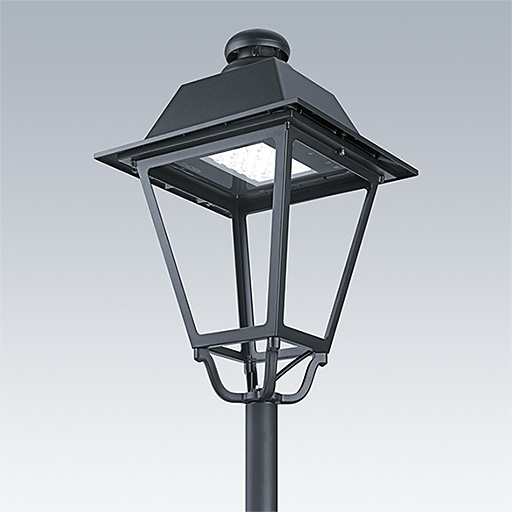

A 19th Century style lantern with 36 LEDs with switchable drive current and symmetrical optic. Post top mounting. Equipped with power reduction circuit, profile selected by rotary switch. Class II electrical, IP66, IK08. Body: die-cast aluminium, painted black (close to RAL9005) textured. Enclosure: 4mm thick extra clear glass. Pre-wired with 5m cable. Complete with 4000K LED

Dimensions: 436 x 436 x 695 mm
Luminaire input power: 78 W
Weight: 9.7 kg
Scx: 0.19 m²

Mode selection
  • Lamp position:700mA
  • Light Source:LED
  • Luminaire luminous flux*:8695 lm
  • Luminaire efficacy*:111 lm/W
  • Colour Rendering Index min.:70
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L80 100000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:78 W
  • Dimming:BP2
  • LED
  • CE
  • ENEC
  • IK08
  • IP66
  • SC2 - Protection Class 2

▼ Photometry

Photometric configuration
