Urba Deco / UD 24L35-730 WSC-S CL2 WS1 T60T BK

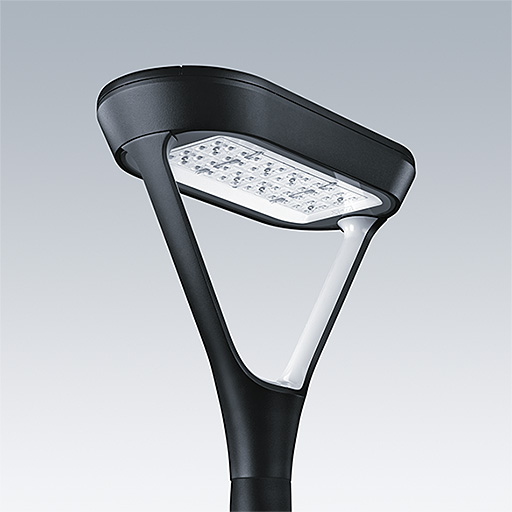

A smart, sophisticated architectural urban lantern with 24 LEDs driven at 350mA and a Wide Street Comfort (symmetrical) optic. Electronic, fixed output control gear. Class II electrical, IP66, Impact strength: IK10. Canopy and base: Die-cast aluminium (AS9U3, LM24 equivalent, EN AC-46000) textured black (close to RAL9005). Enclosure: 6mm thick clear glass. Arms: Die-cast aluminium textured black (close to RAL9005) covered with a shield in plastic ASA. Pre-wired with 1m cable. Post top mounting to Ø60mm column, luminaire perpendicular to the road. Complete with 3000K LED.

Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.

Dimensions: 510 x 241 x 474 mm
Luminaire input power: 26.1 W
Luminaire luminous flux: 3794 lm
Luminaire efficacy: 145 lm/W
Weight: 7.1 kg
Scx: 0.049 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:3794 lm
• Luminaire efficacy*:145 lm/W
• Colour Rendering Index min.:70
• Correlated colour temperature*:3000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated useful life (B10)*:L95 100000 h at 35 °C
• Ballast:1x EL2
• Luminaire input power*:26.1 W
• Dimming:FO
