  • Raze Architectural — RAA L 1L50-827 HFX 6K MSF BK

Raze Architectural / RAA L 1L50-827 HFX 6K MSF BK

96632321

▼ Data Sheet

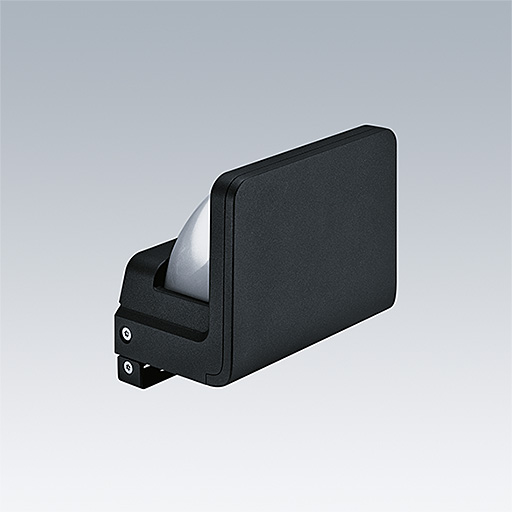

A compact, surface mounted, LED wall grazer, incorporating Thorn's Flat beam® technology. 1 LED driven at 500mA. Integral DALI dimmable LED driver included. Class II electrical, IP66, IK08. Housing: die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured black. Bowl: UV stablised polycarbonate, semi-frosted. Fasteners: stainless steel. Complete with 2700K LED.

S version driver capable of supplying up to three luminaires.
MSF variant with adjustable tilt up to ±15°.
MWA variant flush mounting.
6kV surge protection as standard. Pre-wired.

Dimensions: 204 x 220 x 148 mm
Luminaire input power: 21 W
Luminaire luminous flux: 1371 lm
Luminaire efficacy: 65 lm/W
Weight: 2.85 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1371 lm
  • Luminaire efficacy*:65 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L70 100000 h at 25 °C
  • Luminaire input power*:21 W
  • Dimming:DaliDim
  • LED
  • CE
  • GLedReP
  • IK10
  • IP66
  • Coastal_C5
  • LLedReP
  • SC2 - Protection Class 2
